ZMDI ZSSC3008KIT

EVAL KIT, ZSSC3008, SENSOR SGNL COND

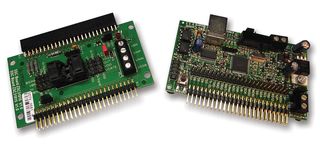

ZMDI ZSSC3008KIT
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
ZMDI ZMDI
Manufacturer Part No:
ZSSC3008KIT
Order Code:
2094179
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
ZSSC3008KIT   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Overview

The ZSSC3008KIT is an evaluation kit for ZSSC3008 sensor signal conditioner with diagnostics. The ZSSC3008 is adjustable to nearly all piezo resistive bridge sensors. Measured and corrected bridge values are provided at the SIG pin, which can be configured as an analog voltage output or as a one wire serial digital output. The digital one wire interface can be used for a simple PC controlled calibration procedure to program a set of calibration coefficients into an on chip EEPROM. The calibrated ZSSC3008 and a specific sensor are mated digitally fast, precise and without the cost overhead associated with trimming by external devices or laser. The ZSSC3008 has a fully differential chopper stabilized pre amplifier with 4 programmable gain settings. Three selectable outputs are available, two analog and one digital, which offer the ultimate in versatility across many applications. SSC communication board is used in kit for interfacing communication between SSC and PC.
  • Digital compensation of sensor offset, sensitivity and non linearity
  • Programmable analog and digital gain, accommodates bridge with spans less than 1mV/V and high offset
  • High voltage protection up to 30V with external JFET
  • Fast response time of 1ms typical
  • Current consumption depends on programmed sample rate
  • Fast power up to data out response, output available 5ms after power up
  • PC controlled configuration and calibration via digital bus interface - simple, low cost
  • 24bit customer ID field for module traceability
  • Independently programmable high and low clipping levels
  • Single pass calibration, quick and precise

Applications

Industrial, Automation & Process Control, Automotive, Portable Devices, Hobby & Education, Sensing & Instrumentation

Contents

SSC communication board, SSC evaluation board, Sensor replacement board, USB cable, Five IC samples, DVD containing software and documents and start up info.

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Sensor Signal Conditioner

:
ZMD

:
-

:
-

:
Communication Board, Sensor Replacement and SSC Board, Software, USB Cable, 5 IC Samples

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (1)

No Longer Manufactured
