FB29B1010

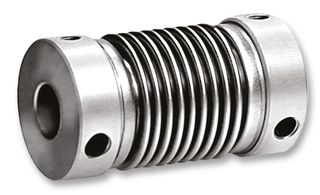

Coupling, FB29B Series, Bellows Type, 10000 rpm, 80 Ncm, 10 mm Diameter Shaft
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | WACHENDORFF |
|---|---|
| Manufacturer Part No | FB29B1010Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2364991 |
| Product Range | FB29B Series |
| Your Part Number | |
| Technical Datasheet |
20 In Stock
Need more?
20 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Php2,525.000 |
| 5+ | Php2,327.000 |
| 10+ | Php2,283.300 |
| 25+ | Php2,239.200 |
Price for:Each
Minimum: 1
Multiple: 1
Php2,525.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | WACHENDORFF |
|---|---|
| Manufacturer Part No | FB29B1010Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2364991 |
| Product Range | FB29B Series |
| Technical Datasheet | |
| Rotational Speed Max | 10000rpm |
| Bore Diameter Min | 10mm |
| Torque | 80N-cm |
| Product Range | FB29B Series |
Product Overview
The FB29B1010 is a Bellows Coupling for use with encoder (10mm shaft diameter). Made with anodised aluminium flange and stainless steel bellows.
- ±0.25mm Maximum offset of shafts radial
- ±0.4mm Maximum offset of shafts axial
- ±4° Maximum offset of shafts angular
- 150Nm/rad Torsion spring stiffness
- 25N/mm Radial spring stiffness
- 8gcm² Moment of inertia
- 150Ncm Maximum clamping torque
Applications
Sensing & Instrumentation
Technical Specifications
| Rotational Speed Max | 10000rpm |
|---|---|
| Torque | 80N-cm |
| Bore Diameter Min | 10mm |
|---|---|
| Product Range | FB29B Series |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84836080 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .02268 |
