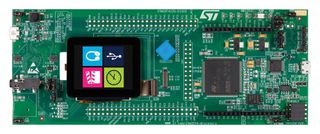

STM32F412G-DISCO
Development Kit, STM32F412ZG MCU, ST-LINK/V2-1 Debugger/Programmer, 240x240 Pixel TFT color LCD
- Manufacturer:
- STMICROELECTRONICS STMICROELECTRONICS
- Manufacturer Part No:
- STM32F412G-DISCO
- Order Code:
- 2664593
- Technical Datasheet:
- STM32F412G-DISCO Datasheet
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- STMicroelectronics
- :
- 32bit
- :
- STM32F4
- :
- ARM
- :
- Cortex-M4
- :
- STM32F412ZG
- :
- Discovery Dev Board STM32F412ZG
- :
- -
Technical Docs (1)
Product Overview
The STM32F412G-DISCO is a STM32F412 discovery kit. The STM32F412 discovery kit (32F412GDISCOVERY) allows users to easily develop applications with the STM32F412 high performance MCUs with ARM cortex-M4 core. The discovery kit combines STM32F412 features with 1.54inch 240 x 240 pixel TFT colour LCD with touchscreen, LEDs, wakeup button, I2S audio codec, MEMS microphones, USB OTG FS, quad-SPI NOR flash memory, microSD card connector. An embedded ST-LINK/V2-1 debugger/programmer is included, specialized add-on boards can be connected thanks to the Arduino Uno or to the expansion connectors.
- STM32F412ZGT6 microcontroller featuring 1MB flash memory and 256KB RAM
- On-board ST-LINK/V2-1 SWD debugger supporting USB re-enumeration capability
- 1.54inch 240 x 240 pixel TFT colour LCD with parallel interface and capacitive touchscreen
- I2S audio CODEC with stereo headset jack including analogue microphone input and loudspeaker output
- Stereo digital MEMS microphones
- MicroSD card connector extension, I2C extension connector, 128Mbit quad-SPI nor flash
- Reset button and Joystick, four colour user LEDs, USB OTG FS with micro-AB connector
- ST-LINK/V2-1 USB connector, user USB FS connector, VIN or 5V from Arduino connectors power options
- Two power supplies for MCU 2V and 3.3V
- Compatible with Arduino Uno rev3 connectors, extension connector for direct access to STM32F412ZGT6
Applications
Embedded Design & Development
