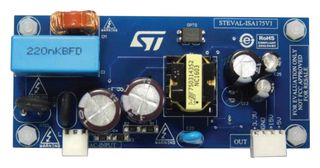

STEVAL-ISA175V1
Evaluation Board, Flyback Converter, Smart Meter Three Output, 15V-5V-3.3V, 9.4W
| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | STEVAL-ISA175V1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 2627824 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | Php3,077.600 |
Product Information
| Manufacturer | STMICROELECTRONICS |
|---|---|
| Manufacturer Part No | STEVAL-ISA175V1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 2627824 |
| Technical Datasheet | |
| Silicon Manufacturer | STMicroelectronics |
| Silicon Core Number | VIPER26 |
| Kit Application Type | Power Management |
| Application Sub Type | Flyback Converter |
| Kit Contents | Eval Board VIPER26 |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
STEVAL-ISA175V1 is an evaluation board that implements a three output isolated flyback specifically designed to supply the STCOMET smart meter and powerline communication system. The board is developed using the VIPER26HD offline high-voltage converter by STMicroelectronics. The device features an 800V avalanche-rugged power section, PWM operation at 115kHz with frequency jittering for lower EMI, current limiting with adjustable set point, on-board soft-start, safe auto-restart after a fault condition and low standby power. The board can be used in a stand-alone configuration or with the dedicated STCOMET development kit and the PCB layout is specifically designed to fit inside a real meter.
- Triple output voltage: 15V at 0.55Arms (0.7A peak), 3.3V at 200 mA and 5V at 100mA
- Extended AC mains input voltage range: 90V AC to 440V AC
- Meets STCOMET smart meter and PLC system specs
- EMC with EN55022, EN61000, EN61000-4-4, EN61000-4-5, EN61000-4-6
Technical Specifications
| Silicon Manufacturer | STMicroelectronics |
|---|---|
| Kit Application Type | Power Management |
| Kit Contents | Eval Board VIPER26 |
| SVHC | No SVHC (25-Jun-2025) |
| Silicon Core Number | VIPER26 |
|---|---|
| Application Sub Type | Flyback Converter |
| Product Range | - |
Technical Docs (1)
Associated Products
6 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Italy Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0025 |
