32.0018+32.0019

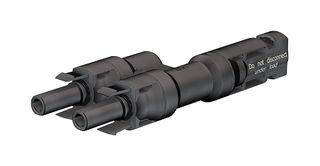

Photovoltaic / Solar Connector, Female Cable Coupler, Cable Mount, IP67, 10 AWG, 30 A
No Longer Stocked
Product Information
| Manufacturer | STAUBLI |
|---|---|
| Manufacturer Part No | 32.0018+32.0019Copy |
| Order Code | 1821356 |
| Product Range | MC4 |
| Technical Datasheet | |
| Photovoltaic / Solar Connector Type | Female Cable Coupler |
| Keying | - |
| Connector Mounting | Cable Mount |
| IP Rating | IP67 |
| Wire Size AWG Max | 10AWG |
| Current Rating | 30A |
| Voltage Rating | 1kV |
| Product Range | MC4 |
| SVHC | To Be Advised |
Product Overview
The 32.0018+32.0019 is a cable-mount Branch Socket with tin-plated copper contacts and crimp contact termination. The power entry connector is suitable for safe and simple connection of PV modules. It is pluggable with single-pole MC PV-cable coupler MC4 and the unmated connections must be protected by sealing caps.
- PC insulation
- UL94V-0 Flammability rating
- Snap-in locking system
- IP67 Mated and IP2X unmated protection rating
- Cable CSA: 2.5mm² to 4mm²
Applications
Industrial, Power Management
Technical Specifications
| Photovoltaic / Solar Connector Type | Female Cable Coupler |
|---|---|
| Connector Mounting | Cable Mount |
| Wire Size AWG Max | 10AWG |
| Voltage Rating | 1kV |
| SVHC | To Be Advised |
| Keying | - |
|---|---|
| IP Rating | IP67 |
| Current Rating | 30A |
| Product Range | MC4 |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | France Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .13 |
