Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | STANDEXMEDER |
|---|---|
| Manufacturer Part No | KSK-1A80-1020Copy |
| Manufacturer Standard Lead Time | 9 weeks |
| Order Code | 1079470 |
| Product Range | KSK-1A80 Series |
| Your Part Number | |
| Technical Datasheet |
412 In Stock
Need more?
412 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Php94.500 |
| 10+ | Php84.600 |
| 25+ | Php78.800 |
| 50+ | Php74.700 |
| 100+ | Php69.300 |
Price for:Each
Minimum: 1
Multiple: 1
Php94.50
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | STANDEXMEDER |
|---|---|
| Manufacturer Part No | KSK-1A80-1020Copy |
| Manufacturer Standard Lead Time | 9 weeks |
| Order Code | 1079470 |
| Product Range | KSK-1A80 Series |
| Technical Datasheet | |
| Product Range | KSK-1A80 Series |
| Contact Configuration | SPST-NO |
| Switch Mounting | - |
| Contact Current Max | 500mA |
| Switching Voltage Max | 170V |
| Switching Power Max | 10W |
| Contact Resistance Max | 0.25ohm |
| Operate AT Min | 10AT |
| Operate AT Max | 20AT |
| SVHC | No SVHC (17-Jan-2023) |
Product Overview

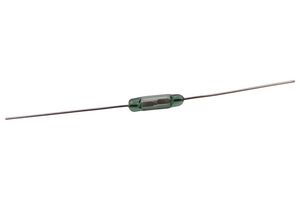

The KSK-1A80 series Reed Switch suitable for remote control, lid detector, relay applications. It is ultra-miniature reed switch featuring a close differential and glass length of 7mm and diameter of 1.8mm. It has pated power of 10W, switching voltage of 170VDC, switching current 0.5A DC.
- Close differential
- -40 to 130°C Operating temperature range
Applications
Test & Measurement, Medical, Automation & Process Control, Industrial
Technical Specifications
| Product Range | KSK-1A80 Series |
|---|---|
| Switch Mounting | - |
| Switching Voltage Max | 170V |
| Contact Resistance Max | 0.25ohm |
| Operate AT Max | 20AT |
| Contact Configuration | SPST-NO |
|---|---|
| Contact Current Max | 500mA |
| Switching Power Max | 10W |
| Operate AT Min | 10AT |
| SVHC | No SVHC (17-Jan-2023) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Japan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85365080 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (17-Jan-2023) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .00005 |
