SWEB 8094 AU / SW

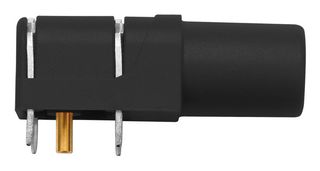

Banana Test Connector, Jack, PCB Mount, 24 A, 1 kV, Gold Plated Contacts, Black
Image is for illustrative purposes only. Please refer to product description.
ManufacturerSCHUTZINGER
Manufacturer Part NoSWEB 8094 AU / SW
Order Code3224814
Your Part Number
Technical Datasheet
593 In Stock
Need more?
593 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Php389.800 |
| 10+ | Php381.600 |
| 25+ | Php369.800 |
Price for:Each
Minimum: 1
Multiple: 1
Php389.80
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerSCHUTZINGER
Manufacturer Part NoSWEB 8094 AU / SW
Order Code3224814
Technical Datasheet
GenderJack
Connector MountingPCB Mount
Current Rating24A
Voltage Rating1kV
Contact PlatingGold Plated Contacts
Connector ColourBlack
Contact MaterialBrass, Beryllium Copper
Contact Termination TypeThrough Hole Right Angle
Product Range-
SVHCLead (27-Jun-2024)
Product Overview
SWEB 8094 AU / SW is a safety angled socket connector.
- Angled safety socket for fixture on PCB
- Socket Ø 4mm
- Gold-plated contact, tin-plated PCB, PA 6.6 (Polyamid) insulation
- 10mohm transition resistance
- 1000V CAT III rated voltage
- 24A rated current
- Operating temperature range from -25°C to +80°C
Technical Specifications
Gender
Jack
Current Rating
24A
Contact Plating
Gold Plated Contacts
Contact Material
Brass, Beryllium Copper
Product Range
-
Connector Mounting
PCB Mount
Voltage Rating
1kV
Connector Colour
Black
Contact Termination Type
Through Hole Right Angle
SVHC
Lead (27-Jun-2024)
Technical Docs (1)
Associated Products
6 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.005
