LUB32

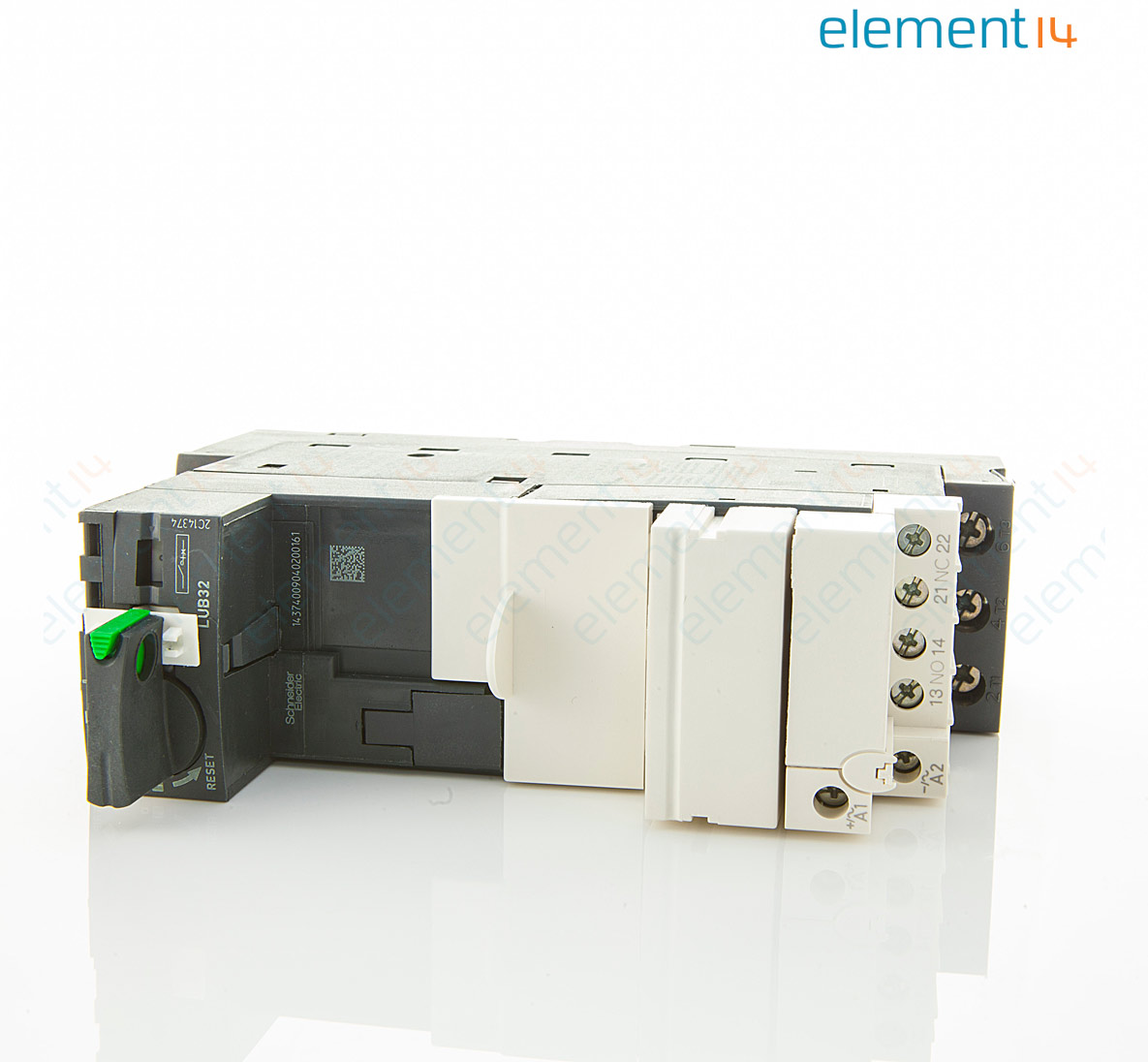

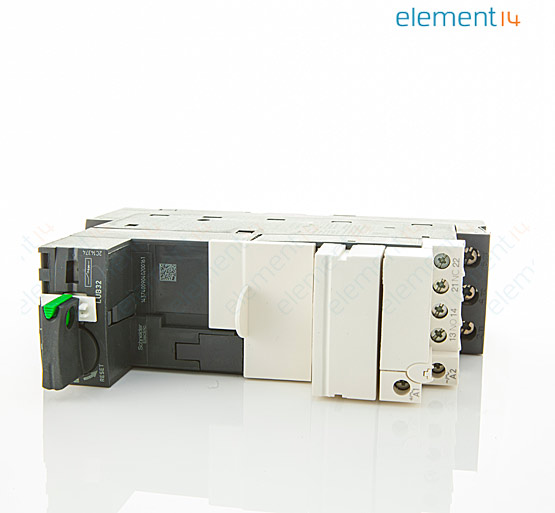

Power Base, Non Reversing, TeSys U LEB Series, 3 Pole, 32 A, 690 Vac, 1 NO + 1 NC
- Manufacturer:
- SCHNEIDER ELECTRIC SCHNEIDER ELECTRIC
- Manufacturer Part No:
- LUB32
- Order Code:
- 1894684
- Product Range
- TeSys U
- Technical Datasheet:
- LUB32 Datasheet
Product Range Selector (TeSys U)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Direct-on-Line (DOL) Starter
- :
- -
- :
- Single Phase, Three Phase
- :
- 3 Pole
- :
- 32A
- :
- 230VAC
- :
- 690VAC
- :
- IP20
- :
- TeSys U
Technical Documents (3)
Product Overview
The LUB32 from Schneider Electric is a 3 pole, screw clamps controlled non reversing power base (LUB) with 32A thermal current.
- 1 NO + 1 NC composition
- Rated operational voltage range from 230V to 690V
- Network frequency range from 40Hz to 60Hz
- Mechanical durability of 15000000 cycles
- Standard dimension of 145mm x 45mm x 126mm (H x W x D)
- Product weight is 0.9Kg
- ABS, ASEFA, ATEX, BV, CCC, CSA, DNV, GL, GOST, LROS and UL certified
- IEC 60947-6-2 and EN 60947-6-2 standard
- IP40 front panel outside connection zone conforming to IEC 60947-1
- IP20, other faces conforming to IEC 60947-1
Applications
Industrial, Automation & Process Control, Motor Drive & Control
