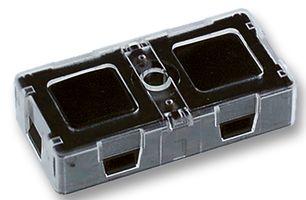

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | RAFI |
|---|---|
| Manufacturer Part No | 1.12.000.501/0000Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 9927522 |
| Product Range | KN 19 Series |
| Your Part Number | |
| Technical Datasheet |
484 In Stock
Need more?
484 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Php1,692.000 |
| 5+ | Php1,629.000 |
| 10+ | Php1,566.000 |
| 20+ | Php1,503.000 |
| 50+ | Php1,347.300 |
Price for:Each
Minimum: 1
Multiple: 1
Php1,692.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | RAFI |
|---|---|
| Manufacturer Part No | 1.12.000.501/0000Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 9927522 |
| Product Range | KN 19 Series |
| Technical Datasheet | |
| Product Range | KN 19 Series |
| Keypad Array | 1 x 2 |
| Keypad Output | Matrix |
| Housing Material | - |
| Contact Current Max | 4A |
| Contact Voltage DC Nom | 50V |
| No. of Keys | 2 |
| Panel Cutout Width | 37.8mm |
| Panel Cutout Height | 18.8mm |
Product Overview
The KN 19 series short-travel Main Switch makes it possible to implement a power switch directly in a low-profile data entry system. This eliminates the need for extra switches on the device and additional openings in the overlay. In this way, you can achieve an optimum of safety and a consistent design. The contact opening widths comply with the VDE standards. The KN 19 can also be employed underneath RK 90 keycaps. Other actuation functions (momentary, latching/momentary) also available.
- IP40 Protection rating
- UL94V-0 Flammability rating
- 50mΩ Maximum contact resistance
Applications
Industrial
Technical Specifications
| Product Range | KN 19 Series |
|---|---|
| Keypad Output | Matrix |
| Contact Current Max | 4A |
| No. of Keys | 2 |
| Panel Cutout Height | 18.8mm |
| Keypad Array | 1 x 2 |
|---|---|
| Housing Material | - |
| Contact Voltage DC Nom | 50V |
| Panel Cutout Width | 37.8mm |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Hungary Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85365019 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .010546 |
