RDK-839

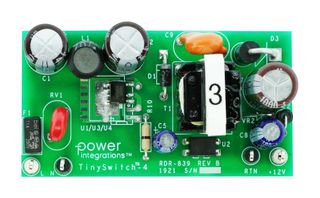

Reference Design Board, TNY288PG, Major Appliances -12W Power Supply
Image is for illustrative purposes only. Please refer to product description.
ManufacturerPOWER INTEGRATIONS
Manufacturer Part NoRDK-839
Order Code3580562
Your Part Number
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 22 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Php6,343.800 |
Price for:Each
Minimum: 1
Multiple: 1
Php6,343.80
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerPOWER INTEGRATIONS
Manufacturer Part NoRDK-839
Order Code3580562
Technical Datasheet
SVHCNo SVHC (21-Jan-2025)
Product Overview
12W power supply for appliances (85VAC to 265VAC input, 12V, 1A output) using TinySwitch-4 (TNY288PG). Exceptional efficiency with <lt/>30mW no-load consumption and <gt/> 84% average active-mode efficiency. The board can fit P/G or the cost-effective D package.
- EcoSmart meets all existing and proposed energy efficiency standards including ErP
- No-load consumption <lt/>30mW, more than 300mW available in stand-by with 500mW input
- <gt/> 84% average active-mode efficiency (DOE6 and EC CoC (v5))
- BP/M capacitor value selects power MOSFET current limit for greater design flexibility
- Accurately toleranced I2f parameter (-10%, +12%) reduces system cost
- Increases MOSFET and magnetics power delivery
- Reduces overload power, which lowers output diode and capacitor costs
- Integrated TinySwitch-4 safety / reliability features
- Meets EN550022 and CISPR-22 Class B conducted EMI with <gt/>12dBµV margin
- Meets IEC61000-4-5 class 3 AC line surge
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000001
