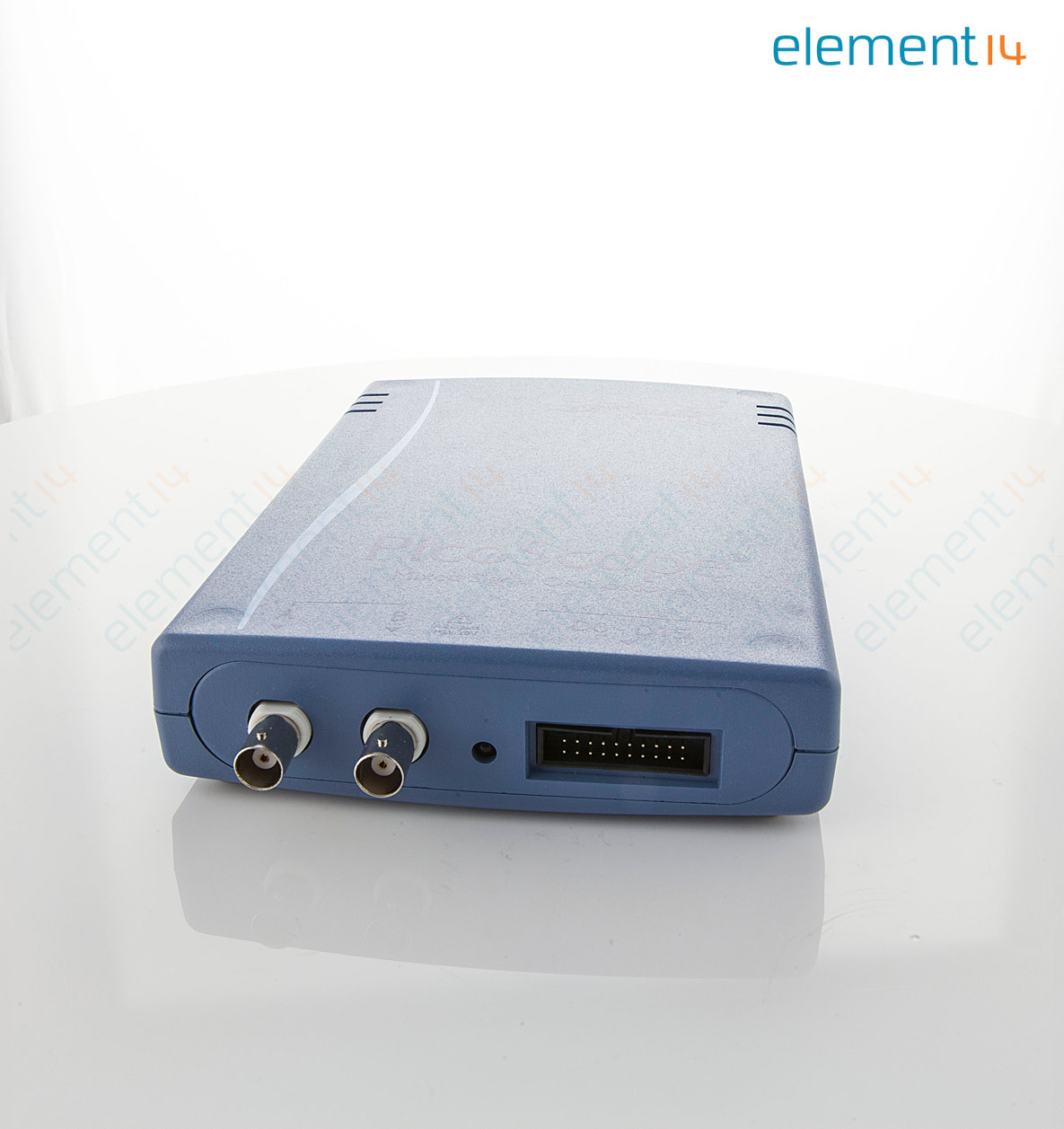

PICOSCOPE 2205-MSO KIT
OSCILLOSCOPE, 2 CH, 25MHZ, 200MSPS
- Manufacturer:
- PICO TECHNOLOGY PICO TECHNOLOGY
- Manufacturer Part No:
- PICOSCOPE 2205-MSO KIT
- Order Code:
- 2069960
- Product Range
- PicoScope 2000
- Also Known As:
- PP798
- Technical Datasheet:
- PICOSCOPE 2205-MSO KIT Datasheet
Product Range Selector (PicoScope 2000)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- PicoScope 2000
- :
- 2+16 Channel
- :
- 25MHz
- :
- 200MSPS
- :
- 16 kpts
- :
- 14ns
- :
- PicoScope 2205-MSO KIT, TA136 Digital Cable, 2x TA139 Pack of 10 Test Clips, PicoScope Probe Pouch, USB Cable, Quick Start Guide
- :
- -
- :
- USB
Technical Documents (2)
CAD Downloads
--Please select...
✔
--Please select...
×
Terms and Conditions
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
Product Overview
With the PicoScope 2205 mixed signal oscilloscope (MSO) it is possible for you to measure both analogue and digital signals at the same time, using one device, and view the analogue waveforms and digital data on the same screen. While featuring the 2+16 channel format, still remains a full-featured oscilloscope. A function generator and arbitrary waveform generator are built-in and include a sweep function. It also offers mask limit testing, math and reference channels, advanced digital triggering, serial decoding, automatic measurements and colour persistence display.
- 2 analogue channels
- 16 digital channels
- Measure analogue signals up to 25 MHz
- Measure digital signals up to 100 MHz
- 200 MS/s mixed-signal sampling
- Built-in function generator and arbitrary waveform generator
- USB-powered
Applications
Maintenance & Repair, Test & Measurement
Contents
PicoScope 2205-MSO KIT, TA136 Digital Cable, 2x TA139 Pack of 10 Test Clips, PicoScope Probe Pouch, USB Cable, Quick Start Guide
Also Known As
PP798
No Longer Manufactured
Php29,209.90
Pricing is unavailable. Please contact customer services.
- Price for:
- 1 Kit
Multiple: 1 Minimum: 1
