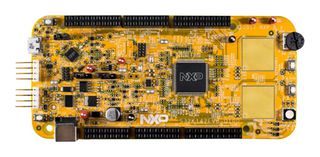

S32K142EVB-Q100
Evaluation Board, S32K142, 32bit, ARM Cortex-M4F, Quick Start Guide
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | NXP |
|---|---|
| Manufacturer Part No | S32K142EVB-Q100Copy |
| Manufacturer Standard Lead Time | 51 weeks |
| Order Code | 2917583 |
| Your Part Number | |
| Technical Datasheet |
8 In Stock
7 more incoming. You can reserve stock now
8 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Php7,641.900 |
Price for:Each
Minimum: 1
Multiple: 1
Php7,641.90
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | NXP |
|---|---|
| Manufacturer Part No | S32K142EVB-Q100Copy |
| Manufacturer Standard Lead Time | 51 weeks |
| Order Code | 2917583 |
| Technical Datasheet | |
| Silicon Manufacturer | NXP |
| No. of Bits | 32bit |
| Silicon Family Name | S32K |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M4F |
| Silicon Core Number | S32K142 |
| Kit Contents | Evaluation Board S32K142, Quick Start Guide |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview
S32K142EVB-Q100 is a low-cost evaluation and development board for general-purpose industrial and automotive applications. Based on the 32-bit Arm® Cortex®-M4F S32K14 MCU, the S32K142EVB offers a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options for quick application prototyping and demonstration.
- Small form factor size supports up to 6” x 4”
- Arduino™ UNO footprint-compatible with expansion “shield” support
- Integrated open-std serial, debug adapter w/ support for several industry-standard debug interface
- Easy access to the MCU I/O header pins for prototyping
- On-chip connectivity for CAN, LIN, UART/SCI
- SBC UJA1169 and LIN phy TJA1027
- Potentiometer for precise voltage and analogue measurement
- RGB LED, microUSB
- Two push-button switches (SW2 and SW3) and two touch electrodes
- Flexible power supply options and external 12V power supply
Technical Specifications
| Silicon Manufacturer | NXP |
|---|---|
| Silicon Family Name | S32K |
| Core Sub-Architecture | Cortex-M4F |
| Kit Contents | Evaluation Board S32K142, Quick Start Guide |
| SVHC | No SVHC (27-Jun-2024) |
| No. of Bits | 32bit |
|---|---|
| Core Architecture | ARM |
| Silicon Core Number | S32K142 |
| Product Range | - |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Mexico Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | 3A991.a.2 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .140704 |
