CU20045-UW5J

VFD Display, Dot Matrix, 4 x 20, 20.9mm x 70.8mm, Parallel / Serial, 250 mA, 4.75 V to 5.25 V

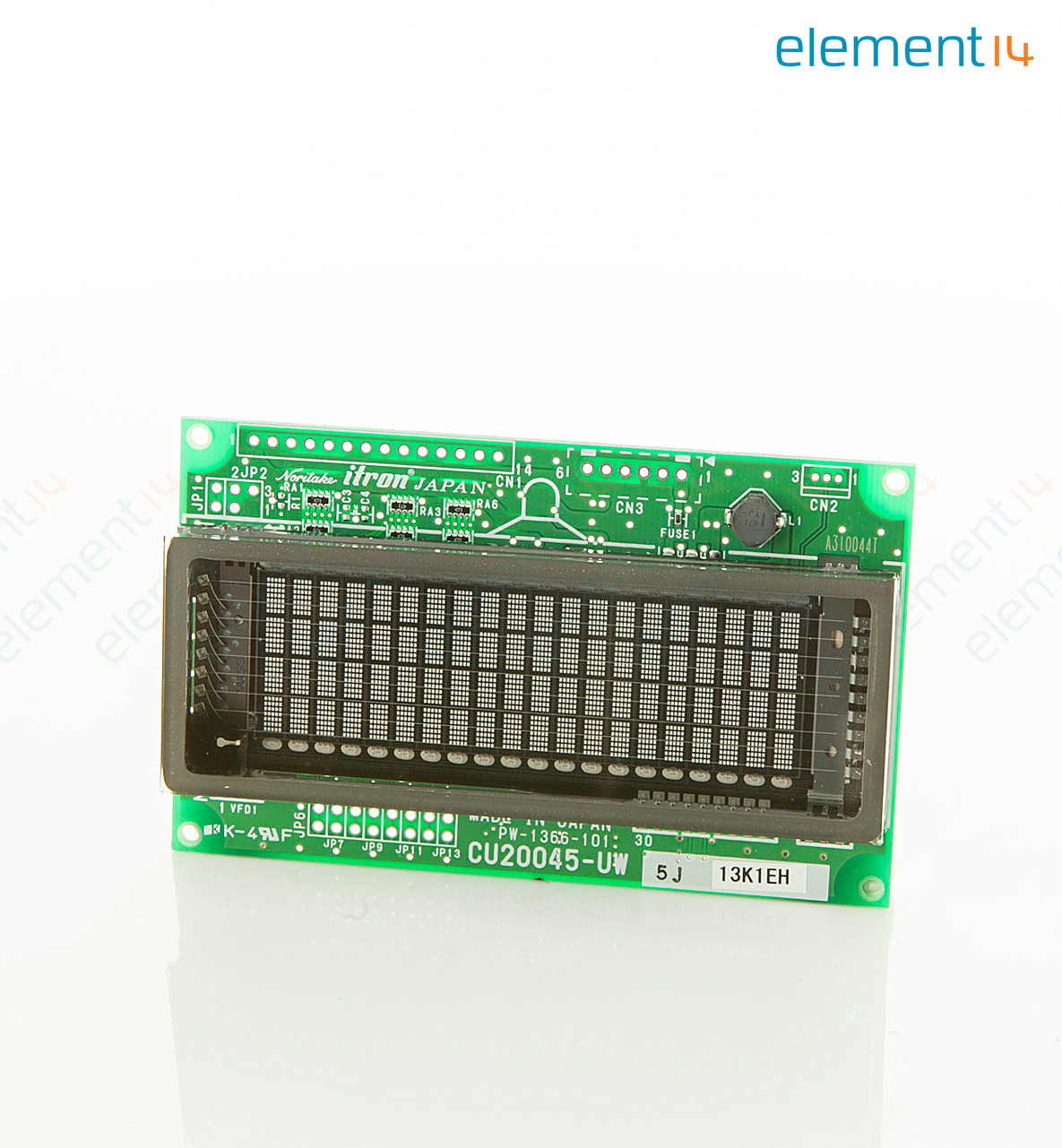

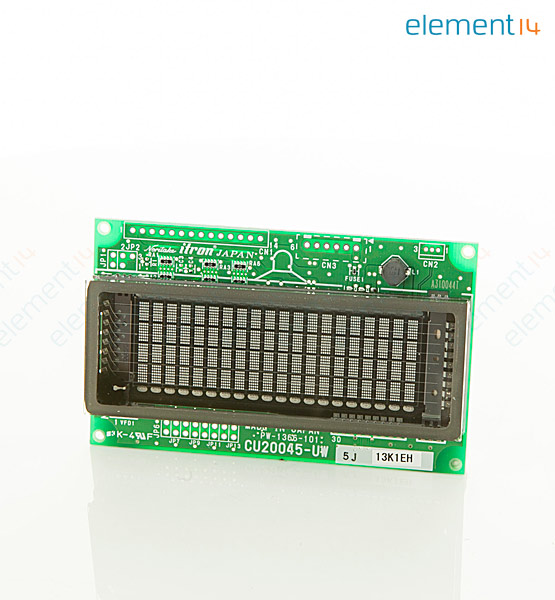

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
CU20045-UW5J
Order Code:
1495417
Technical Datasheet:
CU20045-UW5J   Datasheet
See all Technical Docs

Product Overview

The CU20045-UW5J is a 20x4 VFD Module for showing large number of characters. It has 5 x 7 ANK, international matrix format and 350cd/m² minimum luminance. VFD module gives the opportunity to mix multi-size built in ASCII fonts with user defined images. A rich command set enables minimum data transfer to achieve the ideal solution.
  • High brightness, easy to read
  • Fast visual response, less than 12µs
  • 1000000 hours MTBF and up to 20 years life
  • Easy to combine graphics and multi-size fonts
  • -40 to 85°C Operating temperature range

Applications

Consumer Electronics

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
4 x 20

:
20.9mm x 70.8mm

:
Dot Matrix

:
4.75V

:
5.25V

:
250mA

:
-40°C

:
85°C

:
Parallel, Serial

:
-

Find similar products Choose and modify the attributes above to find similar products.
