NMD050505SC
Isolated Through Hole DC/DC Converter, Power Sharing, ITE, SIP, 1:1, 1 W, 2 Output, 5 V

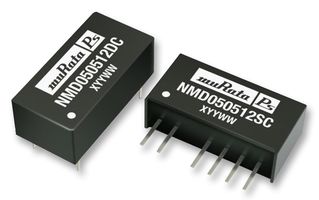

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMURATA POWER SOLUTIONS
Manufacturer Part NoNMD050505SCCopy
Order Code1021452
Product RangeNMD Series
Your Part Number
No Longer Manufactured
Product Information
ManufacturerMURATA POWER SOLUTIONS
Manufacturer Part NoNMD050505SCCopy
Order Code1021452
Product RangeNMD Series
Technical Datasheet
Power Supply ApplicationsITE
DC / DC Converter TypeSIP
Input Ratio1:1
Output Power Max1W
No. of Outputs2 Output
Output Voltage - Output 15V
Output Current - Output 1100mA
Output Voltage - Output 25V
Output Current - Output 2100mA
Output RegulationUnregulated
Isolation Voltage1kV
Input Voltage DC Nom5V
DC / DC Converter Output TypeFixed
Width6mm
Height10mm
Depth19.5mm
Input Voltage DC Min4.5V
Input Voltage DC Max5.5V
Product RangeNMD Series
Alternatives for NMD050505SC
2 Products Found
Product Overview
The NMD050505SC is a 2-output 1W board-mount isolated DC to DC Converter ideally suited to applications where a potential difference exists between loads, e.g. motor control circuits. The twin outputs offer cost and space savings by consolidating two DC/DC converters into one. All of the rated power may be drawn from a single output provided the total load does not exceed 1 watt.
- Input/output isolation 1kVDC
- 1kVDC Output/output isolation
- Power sharing on outputs
- Efficiency up to 80%
- 0.85W/cm³ Power density
- Footprint from 1.17cm²
- No heatsink required
- Internal SMD construction
- Fully encapsulated with toroidal magnetics
- No external components required
- MTTF up to 1.6 million hours
- PCB mounting
Applications
Power Management, Motor Drive & Control
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
