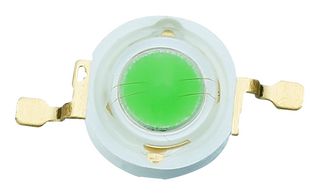

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | THEM-CLGX(520535)Copy |
| Order Code | EACH 2627657 EACH 2627657RL |
| Your Part Number | |
| Technical Datasheet |
No Longer Manufactured
Product Information
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | THEM-CLGX(520535)Copy |
| Order Code | EACH 2627657 EACH 2627657RL |
| Technical Datasheet | |
| Product Range | - |
| LED Colour | Green |
| Wavelength Typ | 535nm |
| Viewing Angle | 155° |
| Luminous Flux @ Test | 75lm |
| Forward Current If Max | 350mA |
| Forward Current @ Test | 350mA |
| Forward Voltage @ Test | 3.4V |
| Luminous Intensity @ Test | - |
| Power Dissipation Pd | 1W |
| Automotive Qualification Standard | - |
| MSL | MSL 3 - 168 hours |
| SVHC | No SVHC (04-Feb-2026) |
Alternatives for THEM-CLGX(520535)
1 Product Found
Product Overview
The THEM-CLGX(520535) Multicomp Pro is a green colour emitting flux LED. This compact design instant light, fully dimmable LED is used in reading lights, portable light, orientation, entertainment, garden, security light, ceiling light, architectural lighting, general lighting and jewel display illumination.
- Long operating life
- Energy efficiency
- Low thermal resistance
- No UV, superior ESD protection
- 155° viewing angle (optical characteristics), lambertian beam pattern (flux characteristics)
- Typical luminous intensity is 75lm at 350mA (flux characteristics)
- Peak wavelength λp is 535nm (max) at optical characteristics 350mA
- DC forward current of 350mA
- Peak pulse current is 500mA
- Operating temperature range from -30°C to +100°C
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Signalling
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
| Product Range | - |
|---|---|
| Wavelength Typ | 535nm |
| Luminous Flux @ Test | 75lm |
| Forward Current @ Test | 350mA |
| Luminous Intensity @ Test | - |
| Automotive Qualification Standard | - |
| SVHC | No SVHC (04-Feb-2026) |
| LED Colour | Green |
|---|---|
| Viewing Angle | 155° |
| Forward Current If Max | 350mA |
| Forward Voltage @ Test | 3.4V |
| Power Dissipation Pd | 1W |
| MSL | MSL 3 - 168 hours |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85414100 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .001279 |
