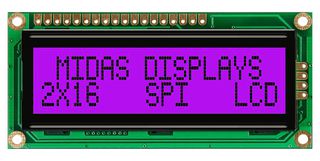

MD21605G6W1-FPTLRGBS
Alphanumeric LCD, 16 x 2, Black on RGB, 5V, SPI, English, Japanese, Transflective
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MIDAS DISPLAYS |
|---|---|
| Manufacturer Part No | MD21605G6W1-FPTLRGBSCopy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 3759025 |
| Your Part Number | |
| Technical Datasheet |
12 In Stock
Need more?
12 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Php1,007.600 |
| 5+ | Php936.000 |
| 10+ | Php878.400 |
Price for:Each
Minimum: 1
Multiple: 1
Php1,007.60
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MIDAS DISPLAYS |
|---|---|
| Manufacturer Part No | MD21605G6W1-FPTLRGBSCopy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 3759025 |
| Technical Datasheet | |
| Character Count x Line | 16 x 2 |
| Display Appearance | Black on RGB |
| Logic Voltage | 5V |
| Interface Type | SPI |
| Font Set | English, Japanese |
| Display Mode | Transflective |
| Character Size | 5.55mm |
| LCD Display Type | FSTN |
| Module Size | 80mm x 36mm |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| Display Construction | COB |
| Backlighting Colour | RGB LED |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
- Module dimension: 80x36x13.5mm
- View area: 66x16mm
- Active area: 56.20x11.5mm
- Number of characters: 16x2
- Dot size: 0.5x0.65mm
- Dot pitch: 0.60x0.70mm
- Character size: 2.95x5.55mm
- Character pitch: 3.55x5.95mm
- LCD type: FSTN positive, Transflective
- Duty: 1/16
- View direction: 6 O'Clock
Technical Specifications
| Character Count x Line | 16 x 2 |
|---|---|
| Logic Voltage | 5V |
| Font Set | English, Japanese |
| Character Size | 5.55mm |
| Module Size | 80mm x 36mm |
| Operating Temperature Max | 70°C |
| Backlighting Colour | RGB LED |
| SVHC | No SVHC (25-Jun-2025) |
| Display Appearance | Black on RGB |
|---|---|
| Interface Type | SPI |
| Display Mode | Transflective |
| LCD Display Type | FSTN |
| Operating Temperature Min | -20°C |
| Display Construction | COB |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85312095 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .04 |
