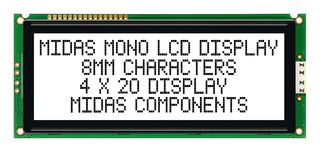

MC42008A6W-FPTLW
Alphanumeric LCD, 20 x 4, Black on White, 5V, Parallel, English, Japanese, Transflective
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MIDAS DISPLAYS |
|---|---|
| Manufacturer Part No | MC42008A6W-FPTLWCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 2606880 |
| Your Part Number | |
| Technical Datasheet |
9 In Stock
Need more?
9 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Php2,271.600 |
| 5+ | Php2,109.600 |
| 10+ | Php1,980.500 |
Price for:Each
Minimum: 1
Multiple: 1
Php2,271.60
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MIDAS DISPLAYS |
|---|---|
| Manufacturer Part No | MC42008A6W-FPTLWCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 2606880 |
| Technical Datasheet | |
| Character Count x Line | 20 x 4 |
| Display Appearance | Black on White |
| Logic Voltage | 5V |
| Interface Type | Parallel |
| Font Set | English, Japanese |
| Display Mode | Transflective |
| Character Size | 9.22mm |
| LCD Display Type | FSTN |
| Module Size | 146mm x 62.5mm |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| Display Construction | COB |
| Backlighting Colour | White |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
- 20 characters x 4 lines
- FSTN transflective
- White LED backlight
- Black characters on a white background appearance
- 5V driving voltage
- SIL top left connection
- -20°C to +70°C operating temperature
- Chip on Board construction
- 146.0mm x 47.0mm x 14.5mm overall size
- 123.0mm x 42.5mm viewing area
- 9.22mm character height
Technical Specifications
| Character Count x Line | 20 x 4 |
|---|---|
| Logic Voltage | 5V |
| Font Set | English, Japanese |
| Character Size | 9.22mm |
| Module Size | 146mm x 62.5mm |
| Operating Temperature Max | 70°C |
| Backlighting Colour | White |
| SVHC | No SVHC (25-Jun-2025) |
| Display Appearance | Black on White |
|---|---|
| Interface Type | Parallel |
| Display Mode | Transflective |
| LCD Display Type | FSTN |
| Operating Temperature Min | -20°C |
| Display Construction | COB |
| Product Range | - |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85312095 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .117 |
