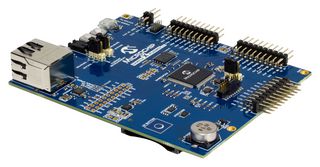

ATSAME54-XPRO
Evaluation Board, SAM E54 Xplained Pro, ATSAME54P20A MCU, Embedded Debugger, Digital I/O
Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | ATSAME54-XPROCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 2777349 |
| Your Part Number | |
| Technical Datasheet |
6 In Stock
1 more incoming. You can reserve stock now
6 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Php7,238.300 |
Price for:Each
Minimum: 1
Multiple: 1
Php7,238.30
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | ATSAME54-XPROCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 2777349 |
| Technical Datasheet | |
| Silicon Manufacturer | Microchip |
| No. of Bits | 32bit |
| Silicon Family Name | SAM E54 |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M4 |
| Silicon Core Number | ATSAME54P20A |
| Kit Contents | SAM E54 Xplained Pro Development Board |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
ATSAME54-XPRO is a SAM E54 Xplained Pro evaluation kit. This is a hardware platform for evaluating the ATSAME54P20A microcontroller (MCU). Supported by the Studio integrated development platform, the kit provides easy access to the features of the ATSAME54P20A and explains how to integrate the device into a custom design. This board is supported by MPLAB Integrated tools development environment and MPLAB Harmony.
- ATSAME54P20A microcontroller, Arm® Cortex®-M4F Core
- Digital I/O - 2 mechanical buttons (user and reset button), 1 Atmel QTouch button, 1 yellow user LED
- 256Mb QSPI flash, ATECC508 CryptoAuthentication™ device
- AT24MAC402 serial EEPROM with EUI-48™ MAC address
- RJ45 with magnetics, KSZ8091RNA PHY, 10Base-T/100Base-TX IEEE 802.3 compliant Ethernet transceiver
- SD/SDIO card connector, parallel capture controller header (ArduCAM compatible)
- ATA6561 CAN transceiver, backup SuperCapacitor, 32.768kHz & 12MHz crystal
- 10-pin cortex debug connector with SWD, 20-pin cortex debug + ETM connector with four bit trace
- USB interface, host, and device, three Xplained Pro extension headers
- Azure certified device with IoT plug and play running on the Azure RTOS operating system
Technical Specifications
| Silicon Manufacturer | Microchip |
|---|---|
| Silicon Family Name | SAM E54 |
| Core Sub-Architecture | Cortex-M4 |
| Kit Contents | SAM E54 Xplained Pro Development Board |
| SVHC | No SVHC (04-Feb-2026) |
| No. of Bits | 32bit |
|---|---|
| Core Architecture | ARM |
| Silicon Core Number | ATSAME54P20A |
| Product Range | - |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .016 |
