AC164126
Prototype Boards, PICtail Plus, Generous Prototyping Area, PICtail Card-Edge Connection
- Manufacturer:
- MICROCHIP MICROCHIP
- Manufacturer Part No:
- AC164126
- Order Code:
- 1439835
- Technical Datasheet:
- AC164126 Datasheet
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Microchip
- :
- PIC, dsPIC
- :
- PIC24, dsPIC33
- :
- -
- :
- -
- :
- Evaluation Boards
- :
- 3x Blank Prototype PICtail Plus Daughter Boards
- :
- -
Technical Documents (2)
Product Overview

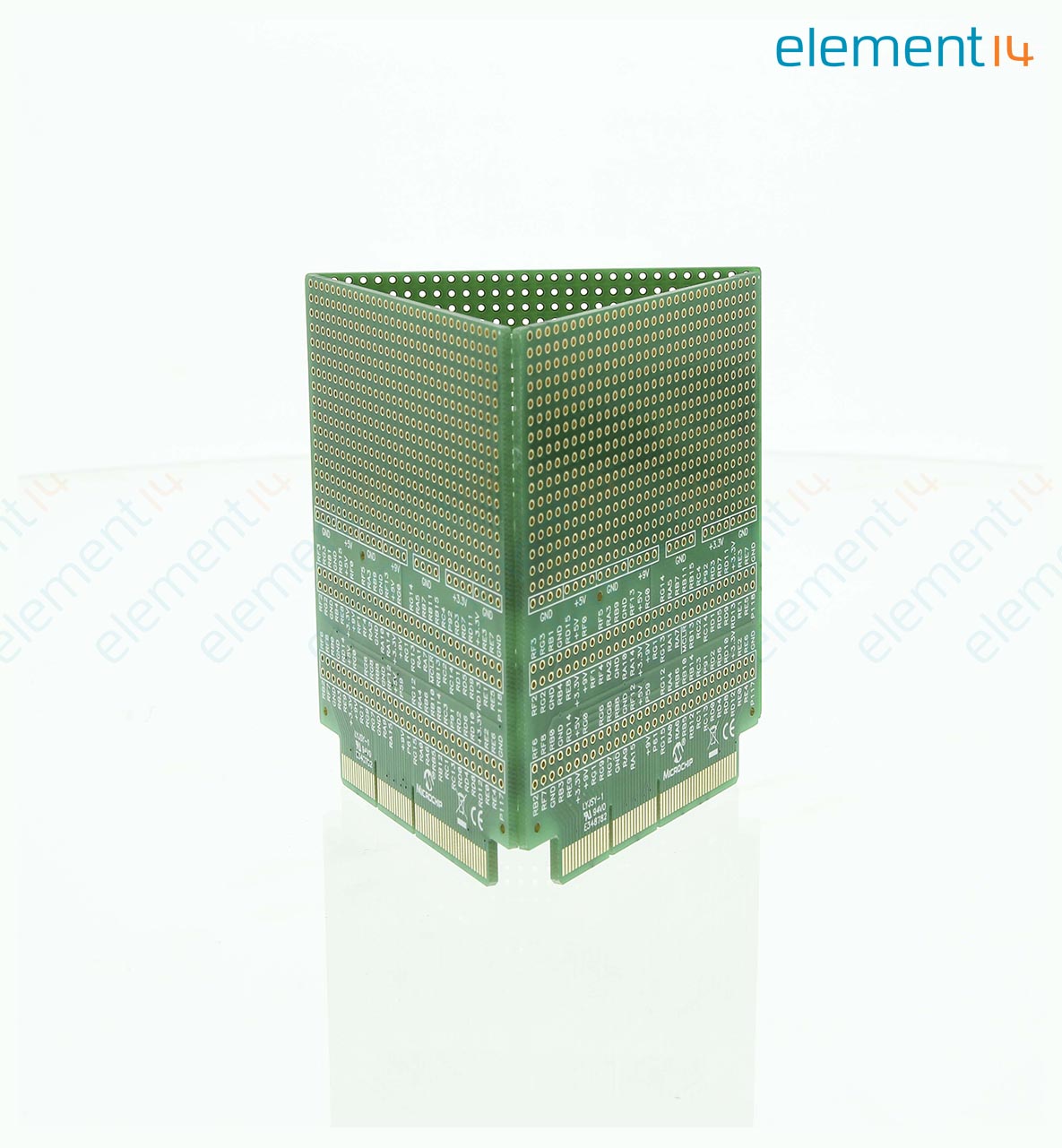

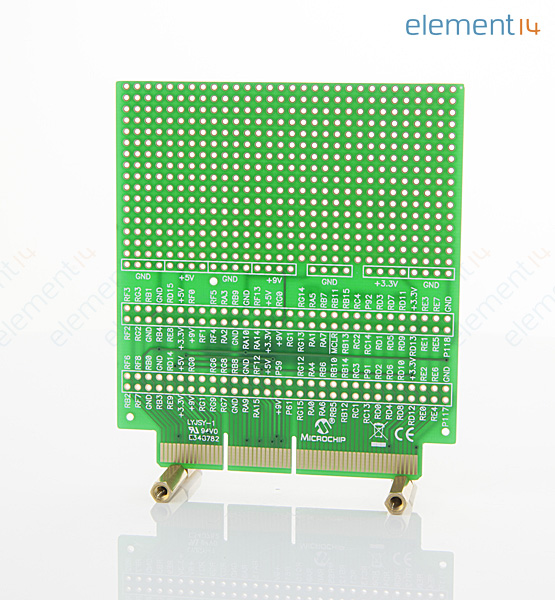

The AC164126 is a Prototype PICtail Plus Daughter Board. The Prototype PICtail Plus Daughter Board allows the designer to breadboard their solution easily for evaluation on an explorer 16 evaluation board using PIC24 MCU or dsPIC33 DSC. This board is an 8cm x 8cm board with a card edge connection that allows it to be plugged directly into the PICtail Plus expansion socket. The breadboard area provides access to all of the processor pins as well as a generous prototyping area. The AC164126 contains three blank Prototype PICtail Plus daughter boards.
- 8cm x 8cm board with a card edge connection
- The breadboard area provides access to all of the processor pins
- The AC164126 contains three blank prototype PICtail Plus daughter boards
Applications
Embedded Design & Development
Footnotes
90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
11 In stock Need more?
×
You can reserve stock now just order your desired quantity and checkout as normal. The quantity that cant be dispatched now will be placed on back order and sent as soon as we get a delivery from our supplier. You only get charged when the products are dispatched to you.
Extra stock is available upon order to the Supplier Lead Time which is approximately 1/22/24
11 UK stock available for 3-4 business days delivery
Due to market conditions delivery times are for general guidance only and may be subject to change at short notice
Php1,934.00
Pricing is unavailable. Please contact customer services.
- Price for:
- Each
Multiple: 1 Minimum: 1
- 1+
| Quantity | Price | Your Price |
|---|---|---|
| 1+ | Php1,934.00 | |
