3700-0200-15
I/O Connector, 68 Contacts, Receptacle, SCSI, Through Hole, PCB Mount

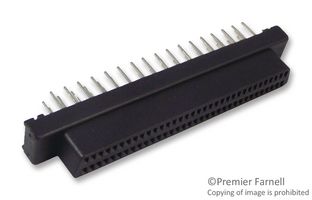

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MH CONNECTORS |
|---|---|
| Manufacturer Part No | 3700-0200-15Copy |
| Manufacturer Standard Lead Time | 26 weeks |
| Order Code | 2373611 |
| Your Part Number | |
| Technical Datasheet |
2,356 In Stock
Need more?
2,356 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Php564.300 |
| 10+ | Php470.300 |
| 100+ | Php419.000 |
| 250+ | Php387.500 |
| 500+ | Php366.800 |
| 1000+ | Php339.300 |
Price for:Each
Minimum: 1
Multiple: 1
Php564.30
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MH CONNECTORS |
|---|---|
| Manufacturer Part No | 3700-0200-15Copy |
| Manufacturer Standard Lead Time | 26 weeks |
| Order Code | 2373611 |
| Technical Datasheet | |
| No. of Contacts | 68Contacts |
| Gender | Receptacle(View Associated Connectors) |
| Connector Type | SCSI |
| Contact Termination Type | Through Hole |
| Product Range | - |
| Connector Mounting | PCB Mount |
| Contact Plating | Gold Plated Contacts |
| Contact Material | Phosphor Bronze |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview
The 3700-0200-15 is a through-hole SCSI I/O Connector with gold-plated phosphor bronze contact and black PBT thermoplastic housing.
- 0.5A Contact current rating
- <gt/>500MΩ Minimum insulation resistance
- 35mΩ maximum contact resistance
- -55 to 85°C Operation temperature range
Applications
Industrial
Technical Specifications
| No. of Contacts | 68Contacts |
|---|---|
| Connector Type | SCSI |
| Product Range | - |
| Contact Plating | Gold Plated Contacts |
| SVHC | No SVHC (27-Jun-2024) |
| Gender | Receptacle |
|---|---|
| Contact Termination Type | Through Hole |
| Connector Mounting | PCB Mount |
| Contact Material | Phosphor Bronze |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366930 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .005 |
