1271.1010

Light Pipe, Single Line, 14.4 mm, 10 Pipes, Circular, Press Fit, Transparent

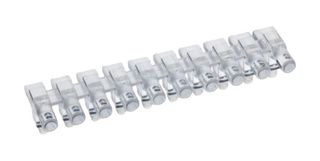

MENTOR 1271.1010
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
MENTOR MENTOR
Manufacturer Part No:
1271.1010
Order Code:
3245251
Technical Datasheet:
1271.1010   Datasheet
See all Technical Docs

Product Overview

The 1271.101 from Mentor is a multiple display single line light guide system. It can be used as an FEL substitute in a 5.08mm pitch and is held in place on the printed board via press-in lugs. This light guide is used in conjunction with SMD LEDs.
  • 10 light pipes with 3mm diameter
  • Transparent light pipe colour
  • Ambient temperature range from -40°C to 85°C
  • ESD protection is less than 12kV
  • Overall length of light guide is 48.7mm
  • Circular pipe shape
  • UL-94 rated plastic material

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
14.4mm

:
10Pipes

:
Circular

:
Press Fit

:
Transparent

:
-

Find similar products Choose and modify the attributes above to find similar products.
