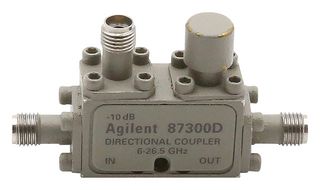

87300D
Test Accessory, 3.5mm Jack, Coaxial Directional Coupler, 26.5 GHz, 50 ohm, 20 W, Network Analysers
Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | KEYSIGHT TECHNOLOGIES |
|---|---|
| Manufacturer Part No | 87300DCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4865964 |
| Product Range | 87300 Series |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 6 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Php135,270.000 |
Price for:Each
Minimum: 1
Multiple: 1
Php135,270.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | KEYSIGHT TECHNOLOGIES |
|---|---|
| Manufacturer Part No | 87300DCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4865964 |
| Product Range | 87300 Series |
| Technical Datasheet | |
| RF Test Component Type | Coaxial Directional Coupler |
| Frequency | 26.5GHz |
| Impedance | 50ohm |
| Continuous RF Input Power Max | 20W |
| For Use With | Network Analysers |
| Product Range | 87300 Series |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
87300D is a compact, broadband directional sampling coupler designed for signal monitoring or, when combined with a coaxial detector, signal levelling. It is supplied with 3.5mm female connectors.
- Frequency range from 6 to 26.5GHz
- Nominal coupling and variation: 10 ±1dB
- Directivity: 13dB
- Maximum SWR: 1.4
- Insertion loss is less than 1.3dB
Technical Specifications
| RF Test Component Type | Coaxial Directional Coupler |
|---|---|
| Impedance | 50ohm |
| For Use With | Network Analysers |
| SVHC | No SVHC (25-Jun-2025) |
| Frequency | 26.5GHz |
|---|---|
| Continuous RF Input Power Max | 20W |
| Product Range | 87300 Series |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Malaysia Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90309000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .6 |
