DL5-260RW6B
Connector, ZIF, ITT Cannon DL, 260 Contacts, 2.54 mm, Receptacle, Wire Wrap, 10 Rows

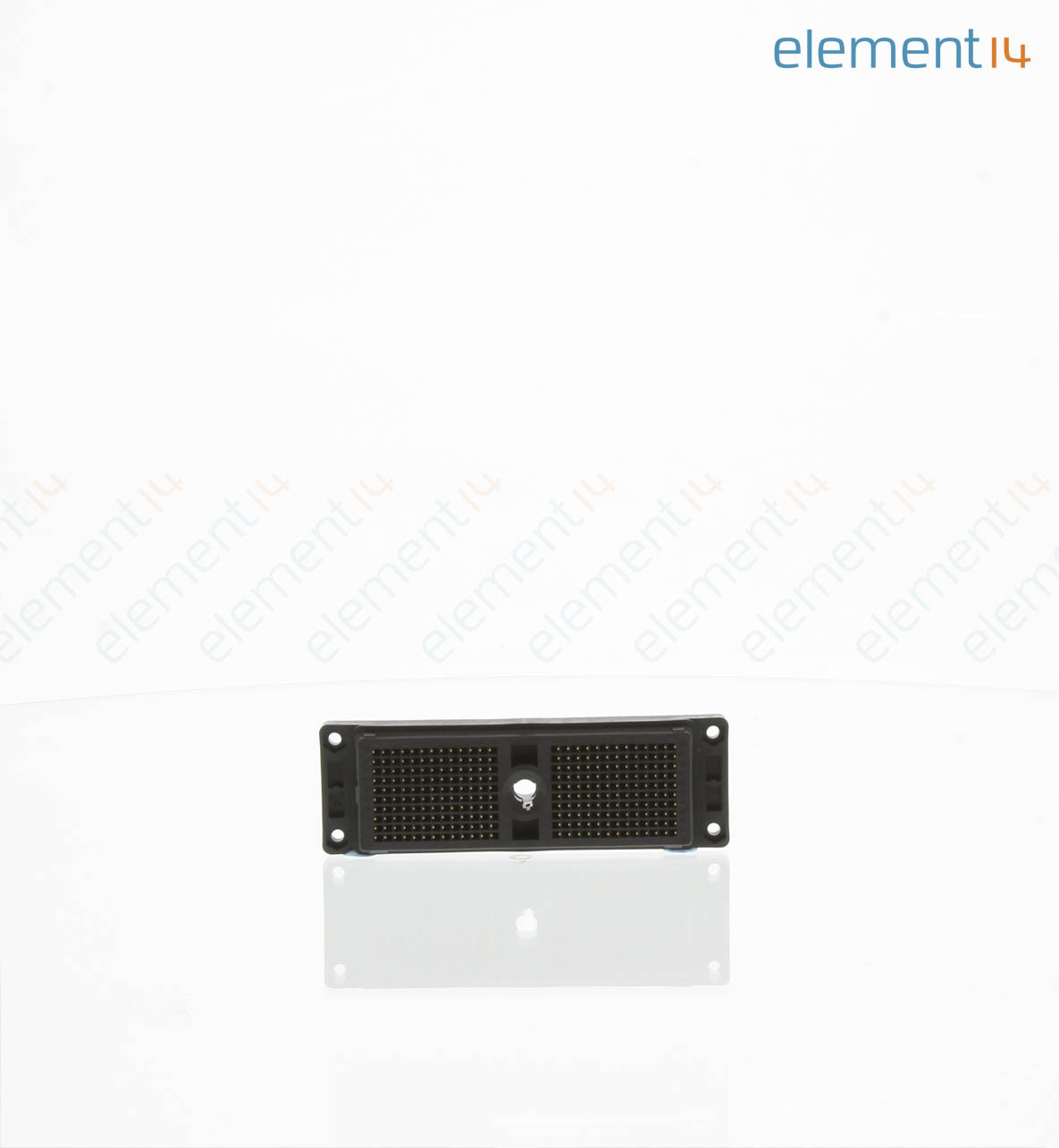

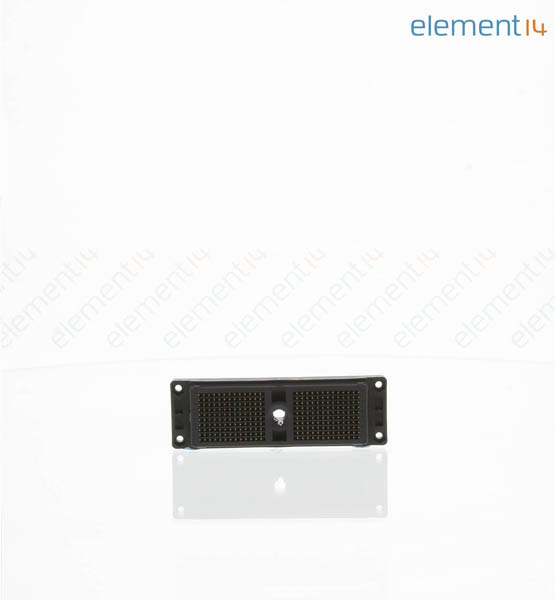

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | ITT CANNON |
|---|---|
| Manufacturer Part No | DL5-260RW6BCopy |
| Manufacturer Standard Lead Time | 13 weeks |
| Order Code | 2677957 |
| Product Range | ITT Cannon DL |
| Also Known As | 111987-0000 |
| Your Part Number | |
| Technical Datasheet |
17 In Stock
Need more?
6 Delivery in 1-2 Business Days(SG stock)
11 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Php38,824.700 |
| 5+ | Php33,971.900 |
| 10+ | Php28,148.000 |
| 25+ | Php25,236.000 |
| 50+ | Php23,295.200 |
| 100+ | Php21,998.700 |
Price for:Each
Minimum: 1
Multiple: 1
Php38,824.70
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | ITT CANNON |
|---|---|
| Manufacturer Part No | DL5-260RW6BCopy |
| Manufacturer Standard Lead Time | 13 weeks |
| Order Code | 2677957 |
| Product Range | ITT Cannon DL |
| Also Known As | 111987-0000 |
| Technical Datasheet | |
| Product Range | ITT Cannon DL |
| No. of Contacts | 260Contacts |
| Pitch Spacing | 2.54mm |
| Gender | Receptacle(View Associated Connectors) |
| Contact Termination Type | Wire Wrap |
| No. of Rows | 10Rows |
| Row Pitch | 2.54mm |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Plated Contacts |
| SVHC | No SVHC (20-Jun-2016) |
Product Overview
The DL5-260RW6B is a 260-position 10-row Card Edge Receptacle with gold-plated copper alloy square post contacts and a plastic body. It is suitable for through-hole mounting pattern.
- 5A Maximum current rating
- 1200VACrms Dielectric withstanding voltage
- 15mΩ Maximum contact resistance
- 5000MΩ Minimum insulation resistance
- -55 to 105°C Operating temperature range
Applications
Medical, Test & Measurement, Commercial, Automation & Process Control, Computers & Computer Peripherals, Avionics, Robotics, Lighting, Communications & Networking, Automotive
Technical Specifications
| Product Range | ITT Cannon DL |
|---|---|
| Pitch Spacing | 2.54mm |
| Contact Termination Type | Wire Wrap |
| Row Pitch | 2.54mm |
| Contact Plating | Gold Plated Contacts |
| No. of Contacts | 260Contacts |
|---|---|
| Gender | Receptacle |
| No. of Rows | 10Rows |
| Contact Material | Copper Alloy |
| SVHC | No SVHC (20-Jun-2016) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (20-Jun-2016) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .1435 |
