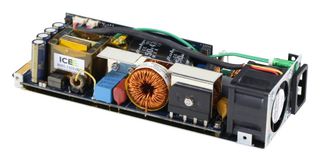

EVAL800WPSU4PC7TOBO1
Evaluation Board, CoolMOS C7 600V MOSFETs, PSU, Server Applications, 800W
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | EVAL800WPSU4PC7TOBO1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 2981479 |
| Also Known As | SP001647126, EVAL_800W_PSU_4P_C7 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | Php42,863.900 |
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | EVAL800WPSU4PC7TOBO1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 2981479 |
| Also Known As | SP001647126, EVAL_800W_PSU_4P_C7 |
| Technical Datasheet | |
| Silicon Manufacturer | Infineon |
| Silicon Core Number | IPZ60R099C7, IPP60R180C7 |
| Kit Application Type | Power Management |
| Application Sub Type | SMPS |
| Kit Contents | Eval Board IPZ60R099C7/IPP60R180C7 |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
800W evaluation board is intended to be a form, fit and function testplatform for server applications to show operation of the 600V CoolMOS™ C7 SJ MOSFET, CoolSiC™ Schottky diode 650V G6, OptiMOS™ 40V, 1EDI and 2EDN EiceDRIVER™, quasi resonant fly back (QR) and XMC™ 1400/4200 controllers. The evaluation board is designed around the Infineon 600V CoolMOS™ 4pin device and OptiMOS™ 40V technology with integrated Schottky-like diode to show switching performance and power density design by using digital control. Target application is server SMPS.
- Low cost 4 layer
- 90 to 265VAC input voltage
- Greater than 95% efficiency at 230VAC
- High efficiency at 100% load
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
| Silicon Manufacturer | Infineon |
|---|---|
| Kit Application Type | Power Management |
| Kit Contents | Eval Board IPZ60R099C7/IPP60R180C7 |
| SVHC | No SVHC (25-Jun-2025) |
| Silicon Core Number | IPZ60R099C7, IPP60R180C7 |
|---|---|
| Application Sub Type | SMPS |
| Product Range | - |
Technical Docs (1)
Associated Products
6 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Slovenia Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .25 |
