ED-GW1302S-868M
LoRaWAN Gateway Module, Mini PCIe, SPI, EU868, -40 to 85 °C

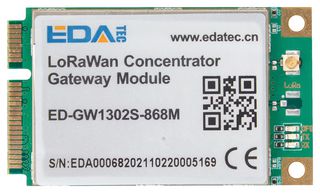

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | EDATEC |
|---|---|
| Manufacturer Part No | ED-GW1302S-868MCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4627140 |
| Product Range | ED-GW1302S Series |
| Your Part Number | |
| Technical Datasheet |
6 In Stock
Need more?
6 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Php5,803.200 |
Price for:Each
Minimum: 1
Multiple: 1
Php5,803.20
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | EDATEC |
|---|---|
| Manufacturer Part No | ED-GW1302S-868MCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4627140 |
| Product Range | ED-GW1302S Series |
| Technical Datasheet | |
| PCI Bus Type | Mini PCIe |
| No. of Input Channels | - |
| No. of Output Channels | - |
| Data Rate | - |
| Power Consumption | - |
| Supported Devices | EU868 |
| Product Range | ED-GW1302S Series |
| SVHC | No SVHC (07-Nov-2024) |
Product Overview
ED-GW1302S-868M is an ED-GW1302Sseries, new generation of LoRaWAN gateway module in mini-PCIe form-factor with SPI interfaces based on Semtech® SX1302 and SX1250. It features extremely low power consumption, outstanding performance with CE, FCC certified. It is designed for M2M and IoT applications and can be widely applied in LPWAN gateway supported scenarios. It would be a perfect choice to significantly reduce the technical difficulties and time-consumption when developing the LoRa gateway devices, including LoRaWAN gateway, miner hotspots.
- Support global license-free frequency band EU868 band
- Powered by Semtech® SX1302 baseband processor
- Ultra-low operating temperature without additional heat dissipation needed
- High sensitivity with Semtech® SX1250 TX/RX front-end; TX power up to 25dBm at 3.3V
- Vcc power range from 3V to 3.6V
Technical Specifications
| PCI Bus Type | Mini PCIe |
|---|---|
| No. of Output Channels | - |
| Power Consumption | - |
| Product Range | ED-GW1302S Series |
| No. of Input Channels | - |
|---|---|
| Data Rate | - |
| Supported Devices | EU868 |
| SVHC | No SVHC (07-Nov-2024) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85176200 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (07-Nov-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .6 |
