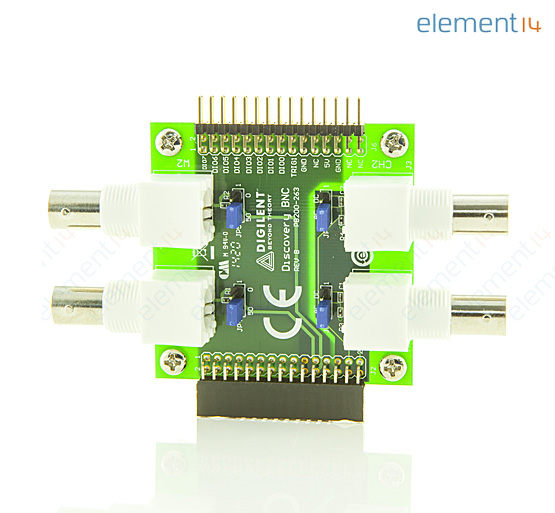

DIGILENT 410-263
Adapter Board, Analog Discovery tools
- Manufacturer:
- DIGILENT DIGILENT
- Manufacturer Part No:
- 410-263
- Order Code:
- 2352612
- ECAD / MCAD
-
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- BNC Adapter Board
- :
- Digilent Analog Discovery Tools
- :
- -
Technical Documents (1)
Product Overview
DISCOVERY BNC adaptor board is intended to be used with the Analog Discovery tool to enable the use of standard BNC terminated test leads and probes. It provides BNC terminations to each of the two oscilloscope channels on the Analog Discovery. Each channel of the oscilloscope can be selected as AC or DC coupled by adjusting the jumper that is located behind that channel's BNC input connector. In addition, the two AWG channels are also equipped with BNC terminations, and each channel can have either the 50ohm or the 0ohm termination selected. This enables the user to match the Analog Discovery's output impedance with either standard 50ohm test leads or to be directly tied to the lead.
- Allows the use of standard BNC terminated test leads & probes on user Analog Discovery
- Selectable AC and DC coupling to oscilloscope probes
- Selectable 50ohm or 0ohm output impedance on Arbitrary Waveform Generator (AWG) channels
Applications
Communications & Networking
27 In stock Need more?
×
You can reserve stock now just order your desired quantity and checkout as normal. The quantity that cant be dispatched now will be placed on back order and sent as soon as we get a delivery from our supplier. You only get charged when the products are dispatched to you.
15 more will be available on 10/5/23
15 more will be available on 10/6/23
Extra stock is available upon order to the Supplier Lead Time which is approximately 12/18/23
27 UK stock available for 3-4 business days delivery
Due to market conditions delivery times are for general guidance only and may be subject to change at short notice
Php1,103.80
Pricing is unavailable. Please contact customer services.
- Price for:
- Each
Multiple: 1 Minimum: 1
- 1+
| Quantity | Price | Your Price |
|---|---|---|
| 1+ | Php1,103.80 | |
