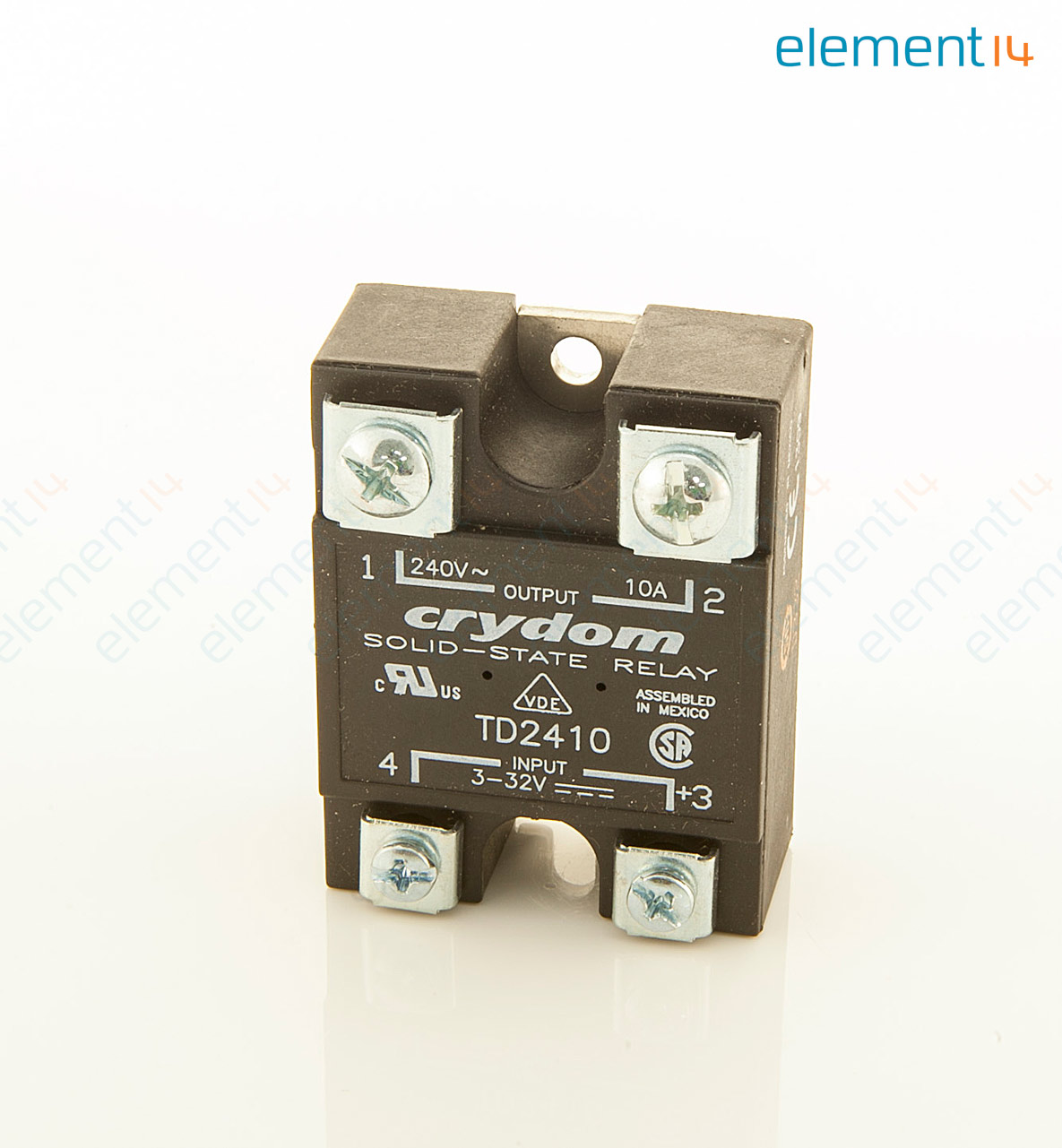

SENSATA/CRYDOM TD2410
Solid State Relay, SPST-NO, 10 A, 280 Vrms, Panel Mount, Screw, Zero Crossing
- Manufacturer:
- SENSATA/CRYDOM SENSATA/CRYDOM
- Manufacturer Part No:
- TD2410
- Order Code:
- 1200267
-
- Product Range
- T
- Technical Datasheet:
- TD2410 Datasheet
- ECAD / MCAD
-
Product Range Selector (T)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- SPST-NO
- :
- 10A
- :
- 280Vrms
- :
- Panel Mount
- :
- Screw
- :
- Zero Crossing
- :
- 24Vrms
- :
- 3VDC
- :
- 32VDC
- :
- T
Technical Documents (2)
Product Overview
The TD2410 is a panel-mount TRIAC output Solid State Relay with screw terminals and thermally conductive epoxy encapsulation.
- Zero-crossing (resistive loads) output
- 400Vpk Transient overvoltage
- 8mARMS Maximum off-state leakage current at rated voltage
- 40mARMS Minimum load current
- 120Apk Maximum surge current (16.6ms)
- 1.6Vpk Maximum on-state voltage drop at rated current
- 1.48°C/W Thermal resistance junction to case
- 3VDC Minimum turn-on voltage
- 1VDC Minimum turn-off voltage
- 4000VRMS Dielectric strength (input/output/base (50/60Hz))
- 8pF Maximum capacitance (input/output)
Applications
Industrial
Warnings
Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.
