| Manufacturer | CREE LED |
|---|---|
| Manufacturer Part No | MLEAWT-A1-0000-0004E3Copy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | Re-Reel2430054RL Cut Tape2430054 |
| Product Range | XLamp ML-E |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1400 | Php35.300 | Php49,420.00 |
| Total Price | Php49,420.00 | ||
| Quantity | Price |
|---|---|
| 1400+ | Php35.300 |
Product Information
| Manufacturer | CREE LED |
|---|---|
| Manufacturer Part No | MLEAWT-A1-0000-0004E3Copy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | Re-Reel2430054RL Cut Tape2430054 |
| Product Range | XLamp ML-E |
| Technical Datasheet | |
| Product Range | XLamp ML-E |
| LED Colour | Cool White |
| Viewing Angle | 120° |
| Luminous Flux @ Test | 51.7lm |
| CCT | 5000K |
| Forward Current If Max | 500mA |
| Forward Voltage @ Test | 3.2V |
| Forward Current @ Test | 150mA |
| Power Dissipation Pd | 1.6W |
Product Overview

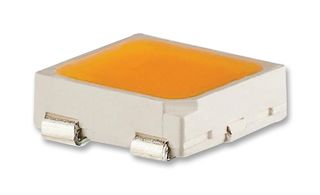

The XLamp ML-E series LED brings lighting-class reliability and performance to 1/2-watt LEDs. The XLamp ML-E LED expands Cree's lighting-class leadership to LED bulbs, linear and distributed lighting applications. With XLamp LED lighting-class reliability, a wide viewing angle, uniform light output and industry-leading chromaticity binning in a 3.5 x 3.5mm package, the XLamp ML-E LED continues Cree's history of segment-focused product innovation in LEDs for lighting applications. The XLamp ML-E LED brings high performance and a smooth look to a wide range of lighting applications, including linear lighting, LED light bulbs, fluorescent retrofits and retail-display lighting.
- Available in white (2600 to 8300K CCT) and 80-, 85- and 90-CRI minimum
- Available in royal blue, blue, green, amber and red
- Available in parallel and series Vf configurations for white and colour
- ANSI compatible sub-bins
- 350mA for parallel, 175mA for series, 250mA for royal blue Maximum drive current
- 120° viewing angle for white, 125° viewing angle for colour
- Uniform chromaticity profile
- Electrically neutral thermal path
- REACH compliant
- UL recognized component (E349212)
Applications
Lighting, Industrial
Technical Specifications
| Product Range | XLamp ML-E |
|---|---|
| Viewing Angle | 120° |
| CCT | 5000K |
| Forward Voltage @ Test | 3.2V |
| Power Dissipation Pd | 1.6W |
| LED Colour | Cool White |
|---|---|
| Luminous Flux @ Test | 51.7lm |
| Forward Current If Max | 500mA |
| Forward Current @ Test | 150mA |
Technical Docs (2)
Alternatives for MLEAWT-A1-0000-0004E3
1 Product Found
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85414100 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000198 |
