6-201
DRIVER BOARD, FOR LCD

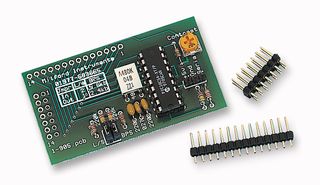

Image is for illustrative purposes only. Please refer to product description.
No Longer Stocked
Product Information
ManufacturerCOMPLEMENTARY TECHNOLOGIES
Manufacturer Part No6-201
Order Code1209612
Technical Datasheet
Kit Application Type-
Kit ContentsBoard
Product Range-
Product Overview
The 6-201 serial driver board is a daughterboard that attaches to LCD modules and converts the standard 4bit or 8bit parallel interface to a more easily managed serial interface at either 2,400baud or 9,600baud. It is compatible with all Hitachi 44780 controllers (or equivalents by OKI, Samsung etc) with up to 80 on screen characters. It is not suitable for 4x40 displays.
Applications
Lighting, LED Lighting
Technical Specifications
Kit Application Type
-
Product Range
-
Kit Contents
Board
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:84733020
RoHS Compliant:To be advised
RoHS Phthalates Compliant:To be advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.022
