Multipair Cable, Audio, Per M, Screened, 1 Pair, 22 AWG

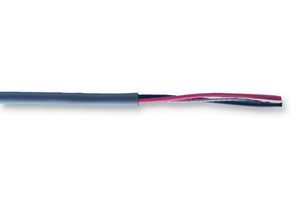

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | BELDEN |
|---|---|
| Manufacturer Part No | 9451Copy |
| Manufacturer Standard Lead Time | 13 weeks |
| Order Code | 1218701 |
| Your Part Number | |
| Technical Datasheet |
2,583 In Stock
Need more?
2,583 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Php182.300 |
Price for:1 Metre
Minimum: 1
Multiple: 1
Php182.30
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BELDEN |
|---|---|
| Manufacturer Part No | 9451Copy |
| Manufacturer Standard Lead Time | 13 weeks |
| Order Code | 1218701 |
| Technical Datasheet | |
| Cable Shielding | Screened |
| No. of Pairs | 1 Pair |
| Wire Gauge | 22AWG |
| Conductor Area CSA | - |
| Reel Length (Imperial) | - |
| Reel Length (Metric) | - |
| Jacket Colour | Grey |
| No. of Max Strands x Strand Size | 7 x 30AWG |
| Voltage Rating | 300V |
| Jacket Material | PVC |
| Conductor Material | Tinned Copper |
| External Diameter | 3.43mm |
| Product Range | - |
| SVHC | No SVHC (10-Jun-2022) |
Product Overview
The 9451 is a 1-pair grey Multi-conductor Cable with polypropylene insulation, tinned copper conductors, tinned copper drain wire and PVC jacket. The cable features Beldfoil® aluminium foil-polyester tape shield (100% coverage).
- CPR: Not Yet Qualified
- 45R Impedance
- 0.17µH/ft Nominal inductance
- 35pF/ft Conductor to conductor nominal capacitance
- 66% Nominal velocity of propagation
- 1.5ns/ft Nominal delay
- 2.9A/conductor at 25°C Maximum recommended current
- -20 to +75°C Operating temperature range
Applications
Audio
Notes
Splice-free continuous cable is available (Max Length: xx meters). Packaging is based on order size: < 10 Meters: Coil/Bag Pack, > 10 Meters: Paper Spool Pack.
Technical Specifications
| Cable Shielding | Screened |
|---|---|
| Wire Gauge | 22AWG |
| Reel Length (Imperial) | - |
| Jacket Colour | Grey |
| Voltage Rating | 300V |
| Conductor Material | Tinned Copper |
| Product Range | - |
| No. of Pairs | 1 Pair |
|---|---|
| Conductor Area CSA | - |
| Reel Length (Metric) | - |
| No. of Max Strands x Strand Size | 7 x 30AWG |
| Jacket Material | PVC |
| External Diameter | 3.43mm |
| SVHC | No SVHC (10-Jun-2022) |
Technical Docs (1)
Alternatives for 9451
1 Product Found
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Mexico Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85444995 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (10-Jun-2022) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .019686 |
