BTHQ22005VSS-SMN-LED WHITE

Alphanumeric LCD, 20 x 2, White on Blue, 5V, Parallel, English, Japanese, Transmissive

BATRON

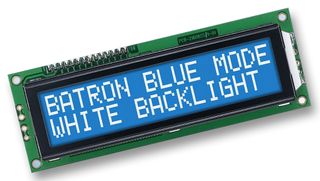

Image is for illustrative purposes only. Please refer to product description.

BATRON BTHQ22005VSS-SMN-LED WHITE Alphanumeric LCD, 20 x 2, White on Blue, 5V, Parallel, English, Japanese, Transmissive

Manufacturer	BATRON
Manufacturer Part No	BTHQ22005VSS-SMN-LED WHITECopy
Order Code	9448861
Product Range	BTHQ22005VSS
Your Part Number
Technical Datasheet	Data Sheet See all Technical Docs

No Longer Stocked

Product Information

BATRON

Manufacturer	BATRON
Manufacturer Part No	BTHQ22005VSS-SMN-LED WHITECopy
Order Code	9448861
Product Range	BTHQ22005VSS
Technical Datasheet	Data Sheet
Character Count x Line	20 x 2
Display Appearance	White on Blue
Logic Voltage	5V
Interface Type	Parallel
Font Set	English, Japanese
Display Mode	Transmissive
Character Size	5.95mm
LCD Display Type	BSTN
Module Size	116mm x 37mm
Operating Temperature Min	0°C
Operating Temperature Max	50°C
Display Construction	COB
Backlighting Colour	White
Product Range	BTHQ22005VSS

Technical Specifications

Character Count x Line	20 x 2
Logic Voltage	5V
Font Set	English, Japanese
Character Size	5.95mm
Module Size	116mm x 37mm
Operating Temperature Max	50°C
Backlighting Colour	White

Display Appearance	White on Blue
Interface Type	Parallel
Display Mode	Transmissive
LCD Display Type	BSTN
Operating Temperature Min	0°C
Display Construction	COB
Product Range	BTHQ22005VSS

Technical Docs (1)

BTHQ22005VSS-SMN-LED WHITE Data Sheet

Legislation and Environmental

Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin:	Taiwan Country in which last significant manufacturing process was carried out
Tariff No:	85414010
US ECCN:	EAR99
EU ECCN:	NLR
RoHS Compliant:	Yes RoHS
RoHS Phthalates Compliant:	To be advised
Download Product Compliance Certificate	Product Compliance Certificate
Weight (kg):	.067
