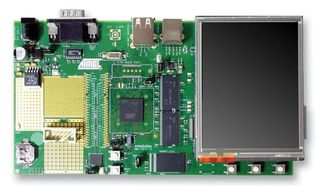

AT91SAM9261-EK

The AT91SAM9261-EK evaluation kit is an effective platform for evaluating chip performance and developing code for applications based on the AT91SAM9261. This is 190MHz ARM926-based microprocessor, with 160KB of SRAM that can be configured as TCM. It features an extensive peripheral set that includes an integrated graphics LCD controller supporting screen resolutions up to 1280x860 with 16M colours and 24bpp. The device integrates multiple communication interfaces, such as FS USB host and device with 2 ports and 2 transceivers, a FS USB device, USARTs, SPIs, I2S and I2C. The external bus interface incorporates controllers for SDRAM and Static memories with specific interface circuitry for Compact Flash and NAND flash.

• 64MB of SDRAM memory, 256MB of NAND flash memory
• One Atmel serial data flash
• One USB device port interface
• Two USB host port interfaces
• One DBGU serial communication port, JTAG/ICE debug interface
• One Ethernet 100-base TX with three status LED's
• One Atmel AT73C213 audio DAC
• One 3.5" 1/4 VGA TFT LCD module with touch screen and backlight
• One power LED and two general purpose LED's
• One data flash SD/MMC card slot

Applications

Hobby & Education, Imaging, Video & Vision, Industrial, Automation & Process Control, Consumer Electronics, Metering

Contents

AT91SAM9261-EK board, one A/B type USB cable, one serial RS232 cable, one RJ45 crossed Ethernet cable, universal input AC/DC power supply with US and EU plug adapter, one DVD-ROM.

Warnings

The board must not be subjected to high electrostatic potentials. A grounding strap or similar protective device should be worn when handling the board.
