MAX25603EVKIT#
Evaluation Kit, MAX25603, Analogue, Digital, Buck-Boost, 1 Output, 5 V to 60 V
| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | MAX25603EVKIT#Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 3922796 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | Php20,875.100 |
Product Information
| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | MAX25603EVKIT#Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 3922796 |
| Technical Datasheet | |
| Device Topology | Buck-Boost |
| No. of Outputs | 1Outputs |
| Output Current | - |
| Output Voltage | - |
| Input Voltage Min | 5V |
| Input Voltage Max | 60V |
| Core Chip | MAX25603 |
| Dimming Control Type | Analogue, Digital |
| Kit Contents | Eval Kit MAX25603 |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

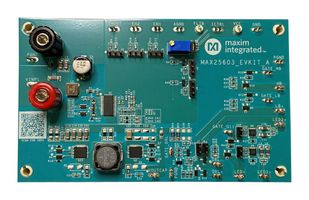

MAX25603 evaluation kit (EV kit) provides a proven design to evaluate the MAX25603 automotive highvoltage, high-brightness LED buck-boost controller. The anode of the LED strings should go to LED1+ or LED2+ terminals and the cathodes to the GND terminal. Shunting FETs are provided to emulate a combination headlamp in which a single LED string can contain the clearance lamp (CLL), low beam (LB) and high beam (HB) all in one. Each can be independently turned on or off by shorting across the appropriate segments of the LED string.
- EV kit operates from a 5V to 60V DC supply voltage
- Configured to deliver up to 1A to one or two strings of 1 to 15 LEDs
- Total voltage of each string can vary from 0V to 60V
