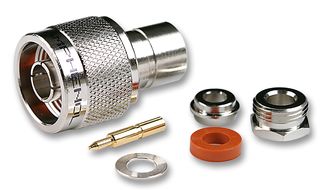

N1141A1-NT3G-1-50
RF / Coaxial Connector, N Coaxial, Straight Plug, Crimp, 50 ohm, RG58, RG58C, RG142A, RG223
1,200 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | Php651.200 |
| 10+ | Php638.600 |
| 100+ | Php602.100 |
| 250+ | Php583.700 |
| 500+ | Php572.400 |
| 1000+ | Php560.700 |
Product Information
Product Overview
The N1141A1-NT3G-1-50 is a straight Solder Plug with gold-plated brass contacts and a PTFE insulator. The type N connector offered the first true microwave performance. This type N connector was developed to satisfy the need for a durable, weatherproof medium size RF connector with consistent performance through 11GHz. Accommodates a wide range of medium to miniature sized RG coaxial cables in a rugged medium size design. Provides customer flexibility in their design and manufacturing with a durable connector. This crimp plug is suitable for RG58, RG58C, RG142A and RG223 standard cable.
- 1500V Peak voltage rating
- 2500V RMS Dielectric withstanding voltage
- 5000MΩ Minimum insulation resistance
Applications
RF Communications, Sensing & Instrumentation
Technical Specifications
N Coaxial
Crimp
RG58, RG58C, RG142A, RG223
Gold Plated Contacts
Cable Mount
No SVHC (17-Dec-2014)
Straight Plug
50ohm
Brass
11GHz
-
Technical Docs (1)
Associated Products
5 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
