1-2316102-5

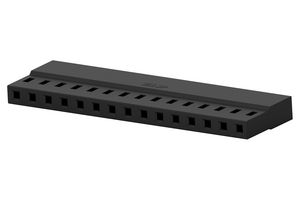

Connector Housing, AMPMODU Series, Receptacle, 15 Ways, 2 mm
- Manufacturer:
- TE CONNECTIVITY TE CONNECTIVITY
- Manufacturer Part No:
- 1-2316102-5
- Order Code:
- 3564610
- Product Range
- AMPMODU Series
Product Range Selector (AMPMODU Series)
See all from this product rangeProduct Overview
AMPMODU 2mm connectors reliably and economically meet the packaging and interconnection requirements of today's miniature sophisticated electronics, occupying 38 percent less space on a PCB than traditional 2.54mm [0.100"] centreline connectors. The new wire-to-board crimp receptacle family includes standard and detent latching housing styles along with contacts for wire ranges 30 to 24AWG (0.05 to 0.22mm²). The receptacle assemblies utilize phosphor bronze contacts with dual cantilever beams in gold or tin plating options. Additionally, wire termination is easily accomplished with TE recommended hand or applicator tooling. Along with TE's board-to-board portfolio, the 2mm crimp receptacle family can meet a wide variety of customer requirements. Typical applications include PLC/IO devices, servo drives, material handling equipment, building and home automation devices, industrial controls, robotics, instrumentation and test equipments.
- AMPMODU 2mm wire to board crimp receptacles, single row standard
- 38% space savings on PCB board as compared to traditional 2.54mm centreline connectors
- Reliable connection in high vibration environments with a detent latching variant
- Design flexibility with various crimp terminal options for wire sizes 30 to 24AWG
- Easy wire termination with manual or automatic TE-recommended tooling
- 2A maximum current rating, 650VAC dielectric withstanding voltage, 125Vrms maximum operating voltage
- UL recognized (cURus), operating environment class III
- Phosphor bronze contact material, high temperature plastic (LCP), black
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- AMPMODU Series
- :
- Receptacle (View Associated Connectors)
- :
- 15Ways
- :
- 2mm
- :
- AMP 28-24AWG 2316113 & 30-28AWG 2316114 Crimp Socket Contacts
Technical Docs (1)
2,000 In stock Need more?
×
You can reserve stock now just order your desired quantity and checkout as normal. The quantity that cant be dispatched now will be placed on back order and sent as soon as we get a delivery from our supplier. You only get charged when the products are dispatched to you.
Extra stock is available upon order to the Supplier Lead Time which is approximately 8/16/21
2,000 available for 3 - 4 day despatch
Php46.50
Pricing is unavailable. Please contact customer services.
- Price for:
- Each
Multiple: 10 Minimum: 10
| Quantity | Price | Your Price |
|---|---|---|
| 10+ | Php46.50 | |
| 100+ | Php41.00 | |
| 250+ | Php36.40 | |
| 500+ | Php32.70 | |
| 1000+ | Php30.30 | |
| 2500+ | Php28.50 | |
