681S13W3103L001

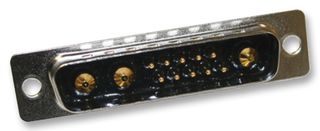

Combination Layout D Sub Connector, 40A, IP68, Seal-D 681S Series, DB-13W3, Plug, 13 Contacts
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | NORCOMP |
|---|---|
| Manufacturer Part No | 681S13W3103L001Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 2294355 |
| Product Range | Seal-D 681S Series |
| Your Part Number |
61 In Stock
Need more?
61 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Php1,105.200 |
| 10+ | Php939.200 |
| 25+ | Php880.700 |
| 100+ | Php790.200 |
| 250+ | Php742.100 |
| 500+ | Php706.500 |
Price for:Each
Minimum: 1
Multiple: 1
Php1,105.20
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | NORCOMP |
|---|---|
| Manufacturer Part No | 681S13W3103L001Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 2294355 |
| Product Range | Seal-D 681S Series |
| Product Range | Seal-D 681S Series |
| Insert Arrangement | DB-13W3 |
| Gender | Plug(View Associated Connectors) |
| No. of Contacts | 13Contacts |
| Contact Type | 10 Signal, 3 Power |
| Contact Termination Type | Solder |
| Connector Mounting | Through Hole Mount |
| Connector Body Material | Steel Body |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Plated Contacts |
| SVHC | Lead (27-Jun-2024) |
Product Overview
The SEAL-D 681S series POWER-D vertical board-mount Mixed D-sub Connectors with machined copper alloy, full gold flash signal and power contacts with glass-filled thermoplastic insulator and nickel-plated, steel shell. It is available in 11 industry standard sizes/positions are 3W3, 5W1, 5W5, 7W2, 9W4, 11W1, 13W3, 13W6, 17W2, 21W1 and 21WA4. Unique sealing method maintains standard D-sub profile allowing for drop in replacement of current POWER-D connectors.
- Available in 9, 15, 25 and 37 sizes/positions
- Available with 40A power contacts, 5A signal
- IP67 Protection
- Allows signal, high current and high voltage in one connector
- Contacts are pre-loaded into the insulator
- UL94V-0 Flammability rating
- Panel sealing kits (Removable or permanent) available as a separate item
Applications
Communications & Networking, Computers & Computer Peripherals, Power Management, Industrial
Technical Specifications
| Product Range | Seal-D 681S Series |
|---|---|
| Gender | Plug |
| Contact Type | 10 Signal, 3 Power |
| Connector Mounting | Through Hole Mount |
| Contact Material | Copper Alloy |
| SVHC | Lead (27-Jun-2024) |
| Insert Arrangement | DB-13W3 |
|---|---|
| No. of Contacts | 13Contacts |
| Contact Termination Type | Solder |
| Connector Body Material | Steel Body |
| Contact Plating | Gold Plated Contacts |
Technical Docs (4)
Associated Products
6 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0112 |
