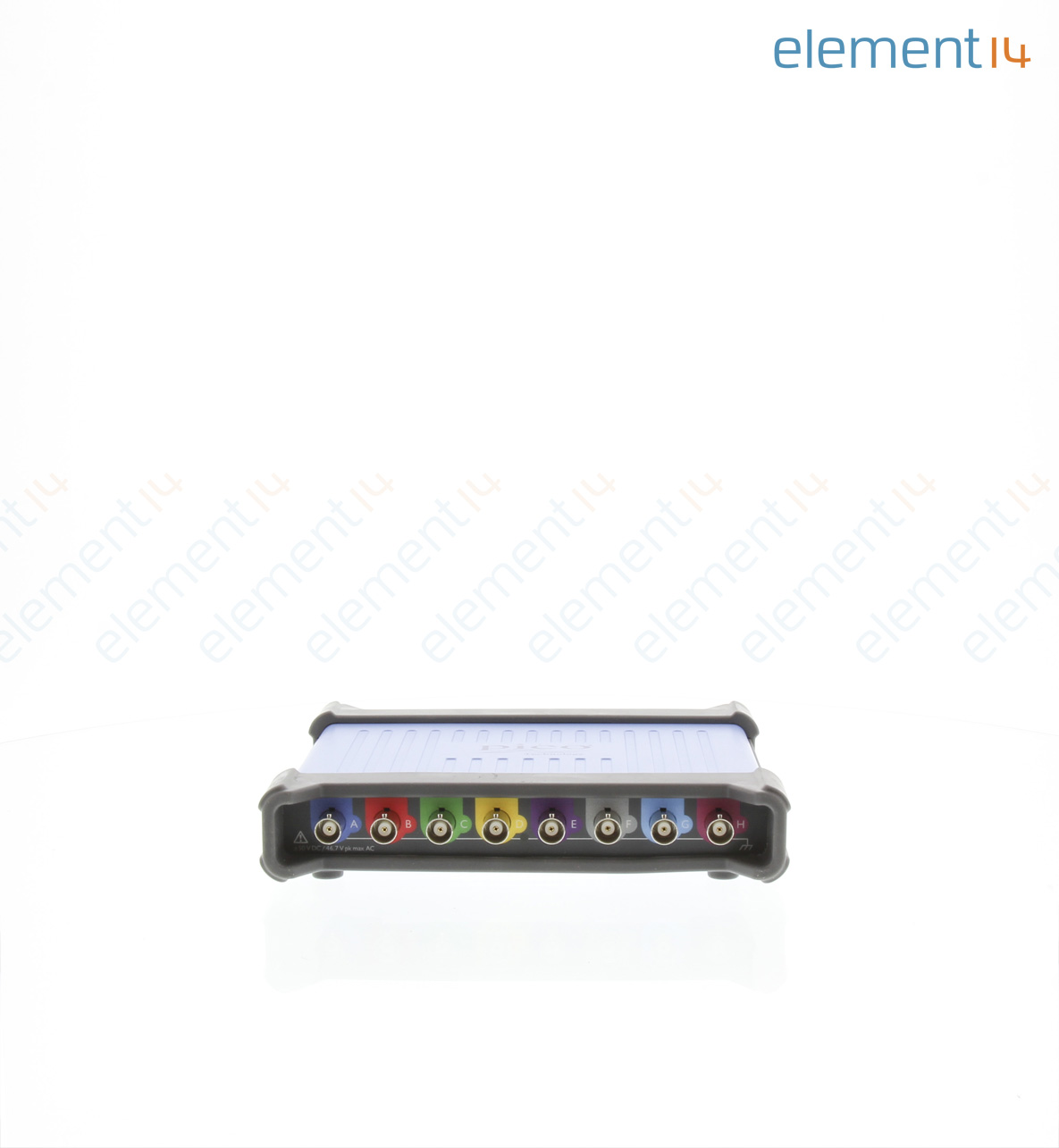

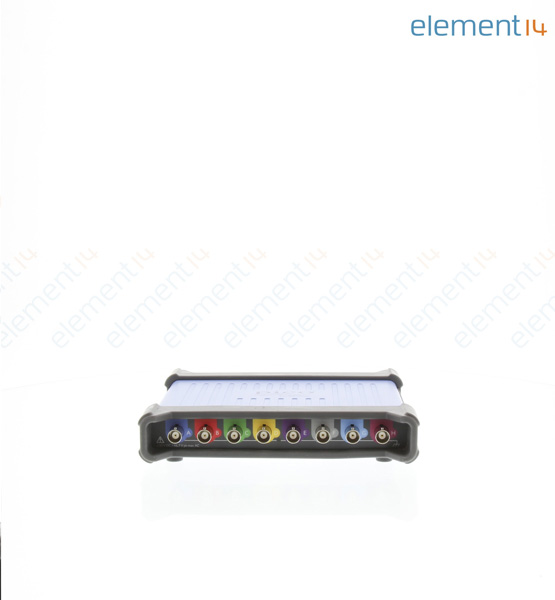

PICOSCOPE 4824

PC USB Oscilloscope, PicoScope 4000 Series, 8 Channel, 20 MHz, 80 MSPS, 256 Mpts, 17.5 ns

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
PICOSCOPE 4824
Order Code:
2392849
Product Range
PicoScope 4000 Series
Also Known As:
PP916
Technical Datasheet:
PICOSCOPE 4824   Datasheet
See all Technical Docs

Product Range Selector (PicoScope 4000 Series)

See all from this product range

Alternatives for PICOSCOPE 4824

Compare Selected (0) Show all similar products
Manufacturer Part Number
Order Code
Manufacturer / Description
Availability
Price For
Quantity

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
PicoScope 4000 Series

:
8 Channel

:
20MHz

:
80MSPS

:
256 Mpts

:
17.5ns

:
PicoScope 4824 oscilloscope , USB 3.0 cable 1.8 m , Quick Start Guide, Software and reference CD

:
5 Years

:
USB

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

Product Overview

The PicoScope 4824 is a portable solution for multi-input applications. With 8 high resolution analogue channels you can easily analyse audio, ultrasound, vibration, power, timing of complex systems and perform a wide range of precision measurement tasks on multiple inputs at the same time. Although the scope has the same small footprint as Pico's existing 2 and 4 channel models, the BNC connectors with a 20mm spacing still accept all common probes and accessories.
  • 8 channels
  • 14 bit resolution AWG & 12 bit vertical resolution
  • Split-screen waveform viewing
  • Arbitrary waveform generator
  • Function generator
  • Spectrum analyser
  • Low sine and pulse distortion
  • Advanced digital triggers
  • Serial bus decoding
  • SuperSpeed USB 3.0 interface

Contents

PicoScope 4824 oscilloscope , USB 3.0 cable 1.8 m , Quick Start Guide, Software and reference CD

Footnotes

Software and user manuals available from: https://www.picotech.com/downloads. In addition, we offer calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.

Also Known As

PP916
