Spectrometers from Broadcom
Create something spectacular with Broadcom's pocket-size spectrometers
Broadcom offers a family of compact modular spectrometers for UV–VIS–NIR measurements in a wide range of industrial, biomedical and other high volume applications targeting wavelengths between 190 and 1700 nm.
Product features
| Specification | Value |
|---|---|
| Lifecycle | Active |
| Wavelength range | 220 - 400nm |
| Distrib. Inventory | Yes |
| RoHS6 Compliant | Y |
| Form Factor | 64.0 x 42.0 x 14.5 mm |
AFBR-S20M2UV

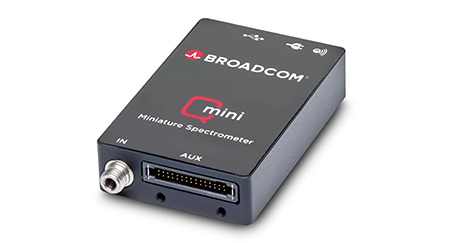

Qmini UV–Miniature USB spectrometer with powerful on-board electronics and numerous communication interfaces for measurements from 220 to 400 nm
Product Description
The Qmini's small design enables tight integration into small handheld analysers and measurements heads in process analytical technologies. Various configurations provide OEMs with most flexibility while integrating the Qmini using serial interfaces and programming languages via the SDK. This matchbox-size spectrometer fulfils high optical performance and makes integration easy.
Key features
- Wavelengths range from 220–400 nm
- Spectral resolution from 0.5 nm
- Miniature size
- Powerful on-board electronics with processing and evaluation
- Numerous communication interfaces (SPI, UART, USB2)
Buy now
Documents
Applications
- Agricultural measurements
- Biomedical applications
- Chemical research
- Color measurements
- Counterfeit detection
- Environmental analysis
- Forensic analysis
- Health and life science
- Light measurements
- Process control and monitoring
- Quality control
- Raman spectroscopy
- Water quality analyis
Product features
| Specification | Value |
|---|---|
| Lifecycle | Active |
| Wavelength range | 370 - 750nm |
| Distrib. Inventory | Yes |
| RoHS6 Compliant | Y |
| Form Factor | 64.0 x 42.0 x 14.5 mm |
AFBR-S20M2VI
Qmini VI–Miniature USB spectrometer with powerful on-board electronics and numerous communication interfaces for measurements from 370 to 750 nm
Product Description
The Qmini's small design enables tight integration into small handheld analysers and measurements heads in process analytical technologies. Various configurations provide OEMs with most flexibility while integrating the Qmini using serial interfaces and programming languages via the SDK. This matchbox-size spectrometer fulfils high optical performance and makes integration easy.
Key features
- Wavelengths range from 370–750 nm
- Spectral resolution from 0.8 nm
- Miniature size
- Powerful on-board electronics with processing and evaluation
- Numerous communication interfaces (SPI, UART, USB2)
Buy now
Documents
Applications
- Agricultural measurements
- Biomedical applications
- Chemical research
- Color measurements
- Counterfeit detection
- Environmental analysis
- Forensic analysis
- Health and life science
- Light measurements
- Process control and monitoring
- Quality control
- Raman spectroscopy
- Water quality analyis
Product features
| Specification | Value |
|---|---|
| Lifecycle | Active |
| Wavelength range | 730 - 1080nm |
| Distrib. Inventory | Yes |
| RoHS6 Compliant | Y |
| Form Factor | 64.0 x 42.0 x 14.5 mm |
AFBR-S20M2NI
Qmini NIR–Miniature USB spectrometer with powerful on-board electronics and numerous communication interfaces for measurements from 730 to 1080 nm
Product Description
The Qmini's small design enables tight integration into small handheld analysers and measurements heads in process analytical technologies.Various configurations provide OEMs with most flexibility while integrating the Qmini using serial interfaces and programming languages via the SDK.This matchbox-size spectrometer fulfils high optical performance and makes integration easy.
Key features
- Wavelengths range from 730–1080 nm
- Spectral resolution from 0.8 nm
- Miniature size
- Powerful on-board electronics with processing and evaluation
- Numerous communication interfaces (SPI, UART, USB2)
Buy now
Documents
Applications
- Agricultural measurements
- Biomedical applications
- Chemical research
- Color measurements
- Counterfeit detection
- Environmental analysis
- Forensic analysis
- Health and life science
- Light measurements
- Process control and monitoring
- Quality control
- Raman spectroscopy
- Water quality analyis
Product features
| Specification | Value |
|---|---|
| Lifecycle | Active |
| Wavelength range | 480 - 1100nm |
| Distrib. Inventory | Yes |
| RoHS6 Compliant | Y |
| Form Factor | 64.0 x 42.0 x 14.5 mm |
AFBR-S20M2VN
Qmini VIS/NIR–Miniature USB spectrometer with powerful on-board electronics and numerous communication interfaces for measurements from 480 to 1100 nm
Product Description
The Qmini's small design enables tight integration into small handheld analysers and measurements heads in process analytical technologies.Various configurations provide OEMs with most flexibility while integrating the Qmini using serial interfaces and programming languages via the SDK.This matchbox-size spectrometer fulfils high optical performance and makes integration easy.
Key features
- Wavelengths range from 480–1100 nm
- Spectral resolution from 1.5 nm
- Miniature size
- Powerful on-board electronics with processing and evaluation
- Numerous communication interfaces (SPI, UART, USB2)
Buy now
Documents
Applications
- Agricultural measurements
- Biomedical applications
- Chemical research
- Color measurements
- Counterfeit detection
- Environmental analysis
- Forensic analysis
- Health and life science
- Light measurements
- Process control and monitoring
- Quality control
- Raman spectroscopy
- Water quality analyis
Product features
| Specification | Value |
|---|---|
| Lifecycle | Active |
| Wavelength range | 225 - 1000nm |
| Distrib. Inventory | Yes |
| RoHS6 Compliant | Y |
| Form Factor | 64.0 x 42.0 x 14.5 mm |
AFBR-S20M2WU
Qmini WIDE UV–Miniature USB spectrometer with powerful on-board for WIDE range optical measurements between 225 and 1000 nm with optimized sensitivity in the ultraviolet range.
Product Description
The Qmini's small design enables tight integration into small handheld analysers and measurements heads in process analytical technologies. Various configurations provide OEMs with most flexibility while integrating the Qmini using serial interfaces and programming languages via the SDK. This matchbox-size spectrometer fulfils high optical performance and makes integration easy.
Key features
- Wavelengths range from 225–1000 nm
- Spectral sensitivity is optimized at 300 nm
- Spectral resolution from 1.5 nm
- Miniature size
- Powerful on-board electronics with processing and evaluation
- Numerous communication interfaces (SPI, UART, USB2)
Buy now
Documents
Applications
- Agricultural measurements
- Biomedical applications
- Chemical research
- Color measurements
- Counterfeit detection
- Environmental analysis
- Forensic analysis
- Health and life science
- Light measurements
- Process control and monitoring
- Quality control
- Raman spectroscopy
- Water quality analyis
Product features
| Specification | Value |
|---|---|
| Lifecycle | Active |
| Wavelength range | 225 - 1000nm |
| Distrib. Inventory | Yes |
| RoHS6 Compliant | Y |
| Form Factor | 64.0 x 42.0 x 14.5 mm |
AFBR-S20M2WV
Qmini WIDE VI–Miniature USB spectrometer with powerful on-board for WIDE range optical measurements between 225 and 1000 nm with optimized sensitivity in the visible range.
Product Description
The Qmini's small design enables tight integration into small handheld analysers and measurements heads in process analytical technologies. Various configurations provide OEMs with most flexibility while integrating the Qmini using serial interfaces and programming languages via the SDK. This matchbox-size spectrometer fulfils high optical performance and makes integration easy.
Key features
- Wavelengths range from 225–1000 nm
- Spectral sensitivity is optimized at 500 nm
- Spectral resolution from 1.5 nm
- Miniature size
- Powerful on-board electronics with processing and evaluation
- Numerous communication interfaces (SPI, UART, USB2)
Buy now
Documents
Applications
- Agricultural measurements
- Biomedical applications
- Chemical research
- Color measurements
- Counterfeit detection
- Environmental analysis
- Forensic analysis
- Health and life science
- Light measurements
- Process control and monitoring
- Quality control
- Raman spectroscopy
- Water quality analyis
Product features
| Specification | Value |
|---|---|
| Lifecycle | |
| Wavelength range | 950 – 1700nm |
| Distrib. Inventory | |
| RoHS6 Compliant | Y |
| Form Factor | 60.0 x 50.0 x 19.0 |
AFBR-S20N1N256
Industry's first pocket-size NIR spectrometer for skilled analysis between 950 and 1700 nm.
Product Description
The Qneo targets high volume applications suiting industrial integration as well as point-of-care detections. Based on a Czerny Turner grating set up this NIR spectrometer offers reliable performance even in harsh production environments. Equipped with an uncooled 256 pixel InGaAs detector the Qneo easily reaches performances that are expected while using cooled and more expensive devices.
- Blog
Key features
- Wavelengths range from 950-1700 nm
- High spectral sensitivity
- Spectral resolution 8 nm
- Uncooled 256 Pixel InGaAs Sensor
- Powerful on-board electronics
- Operating temperature: -15 to 55 °C
- Numerous communication interfaces
Buy now
Documents
Applications
- Light analysis
- Chemical research
- Raman spectroscopy
- Forensic analysis
- System integration
- Process control and monitoring
- Biomedical applications
- Quality control
- Environmental measurements
Product features
| Specification | Value |
|---|---|
| Lifecycle | Active |
| Distrib. Inventory | Yes |
| RoHS6 Compliant | Y |
| Form Factor | NA |
AFBR-S20SK-V2
Increase the sensitivity of your spectrometer with the slit evaluation kit (50, 100, 150, 200 µm)
Product Description
The slit evaluation kit includes four different slit diameters integrated in the SMA 905 connectors. With a hexagon socket screw key, you can easily switch the SMA connector with the integrated slit and adjust the optical performance to your spectrometer. A smaller slit leads to higher optical resolution but decreases the spectral sensitivity of the device. E.g. Changing from a 20 µm diameter to a 50 µm slit doubles your optical throughput and allows detecting weaker signals.
Key features
- 50 μm slit
- 100 μm slit
- 150 μm slit
- 200 μm slit
- Hexagon socket screw key
Buy now
Product features
| Specification | Value |
|---|---|
| Lifecycle | Active |
| Wavelength range | 220 - 390nm |
| Distrib. Inventory | Yes |
| RoHS6 Compliant | Y |
| Form Factor | 89.5 x 68.0 x 19.5 |
AFBR-S20W2UV
Qwave UV–Compact USB spectrometer with high resolution and sensitivity for professional measurements between 220 and 390 nm
Product Description
The Qwave spectrometer offers technical specifications normally found in much larger spectrometers.
With the integrated 3648 pixel liner sensor this compact device features advanced optical resolution and sensitivity, dynamic range and thermal stability. This is the ideal spectroscopic device supporting a large number of applications that require high performance in a compact design regardless of industrial sensing or mobile analysis.
Key features
- Wavelengths range from 220-390 nm
- Spectral resolution from 0.3 nm
- High optical sensitivity
- Exceptional thermal stability
- Smart and easy integration
Buy now
Documents
Applications
- Light analysis
- Chemical research
- Raman spectroscopy
- Forensic analysis
- System integration
- Process control and monitoring
- Biomedical applications
- Quality control
- Environmental measurements
Product features
| Specification | Value |
|---|---|
| Lifecycle | Active |
| Wavelength range | 350 - 880nm |
| Distrib. Inventory | Yes |
| RoHS6 Compliant | Y |
| Form Factor | 89.5 x 68.0 x 19.5 |
AFBR-S20W2VI
Qwave VIS–Compact USB spectrometer with high resolution and sensitivity for professional measurements from 350 to 880 nm
Product Description
The Qwave spectrometer offers technical specifications normally found in much larger spectrometers.
With the integrated 3648 pixel liner sensor this compact device features advanced optical resolution and sensitivity, dynamic range and thermal stability. This is the ideal spectroscopic device supporting a large number of applications that require high performance in a compact design regardless of industrial sensing or mobile analysis.
Key features
- Wavelengths range from 350-880 nm
- Spectral resolution from 0.6 nm
- High optical sensitivity
- Exceptional thermal stability
- Smart and easy integration
Buy now
Documents
Applications
- Light analysis
- Chemical research
- Raman spectroscopy
- Forensic analysis
- System integration
- Process control and monitoring
- Biomedical applications
- Quality control
- Environmental measurements
Product features
| Specification | Value |
|---|---|
| Lifecycle | Active |
| Wavelength range | 700 - 1030nm |
| Distrib. Inventory | Yes |
| RoHS6 Compliant | Y |
| Form Factor | 89.5 x 68.0 x 19.5 |
AFBR-S20W2NI
Qwave NIR–Compact USB spectrometer with high resolution and sensitivity for professional measurements from 700 to 1030 nm
Product Description
The Qwave spectrometer offers technical specifications normally found in much larger spectrometers.
With the integrated 3648 pixel liner sensor this compact device features advanced optical resolution and sensitivity, dynamic range and thermal stability. This is the ideal spectroscopic device supporting a large number of applications that require high performance in a compact design regardless of industrial sensing or mobile analysis.
Key features
- Wavelengths range from 700-1030 nm
- Spectral resolution from 0.5 nm
- High optical sensitivity
- High optical sensitivity
- Smart and easy integration
Buy now
Documents
Applications
- Light analysis
- Chemical research
- Raman spectroscopy
- Forensic analysis
- System integration
- Process control and monitoring
- Biomedical applications
- Quality control
- Environmental measurements
