TRACOPOWER  TEN 10-2421  Isolated Board Mount DC/DC Converter, High Power Density, Through Hole, 10W, 5V, 1A, -5V, 1A

TRACOPOWER TEN 10-2421
TRACOPOWER TEN 10-2421
Technical Data Sheet (172.93KB) EN See all Technical Docs

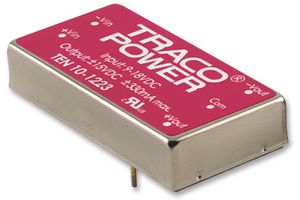

Image is for illustrative purposes only. Please refer to product description.

TRACOPOWER TEN 10-2421
TRACOPOWER TEN 10-2421

Product Information

DC / DC Converter Output Type:
Fixed
No. of Outputs:
2 Output
Input Voltage DC Min:
18V
Input Voltage DC Max:
36V
Output Power Max:
10W
Output Voltage - Output 1:
5V
Output Voltage - Output 2:
-5V
Output Current - Output 1:
1A
Output Current - Output 2:
1A
DC / DC Converter Type:
DIP
DC / DC Converter Mounting:
Through Hole
Approvals & Standards:
-
Width:
25.4mm
Height:
10.2mm
Depth:
50.8mm
Output Voltage - Output 3:
-
Output Current - Output 3:
-
Product Range:
TEN 10 Series
SVHC:
No SVHC (17-Dec-2015)

Find similar products  grouped by common attribute

Legislation and Environmental

Country of Origin:
Taiwan

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
85044090
Weight (kg):
.03
