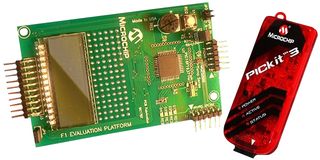

MICROCHIP - DV164132 - PIC12F1, PIC16F1, ICSP I/F, EVAL KIT

MICROCHIPDV164132
Image is for illustrative purposes only.
Please refer to product description
Manufacturer:
MICROCHIP
Order Code:
2066251
Manufacturer Part No:
DV164132

Technical Data Sheet (495.79KB) EN
Technical Data Sheet (495.79KB) EN

Product Information
  • PIC12F1, PIC16F1, ICSP I/F, EVAL KIT
  • Silicon Manufacturer: Microchip
  • Core Architecture: PIC
  • Core Sub-Architecture: PIC16
  • Silicon Core Number: PIC16F
  • Silicon Family Name: PIC16F19xx
  • No. of Bits: 8bit
  • Kit Contents: F1 Evaluation Platform, PICkit 3 In-circuit Debugger, USB Cable, Platform & Demonstration Guide
  • Features: nanoWatt XLP Technology, 3V, 40 Segment Multimeter LCD Glass, MCP9800 Temperature Sensor
  • SVHC: No SVHC (16-Jun-2014)
PIC21F1 and PIC16F1 Evaluation Platform with Generous Prototyping Area
The DV164132 is a F1 evaluation kit. It is a demonstration/development tool for enhanced mid-range PIC microcontrollers (PIC12F1xxx/PIC16F1xxx) and includes the PICkit-3 for quick programming and development. Populated with a PIC16LF1937 featuring XLP technology, this platform consists of a 44-pin development board with prototyping space, 3V LCD glass, support for the motor control add-on (DM164130-2) and support for PICkit-3 & PICkit serial. This kit provides a platform for general purpose development and includes demonstrations focusing on low Power, LCD and motor control. Quick & easy development is ensured with the integrated functionality including prototyping area, LCD control, system current monitoring, temperature sensing, Real time clock, LED drive, button control and BLDC motor control.
  • 44-pin development board with generous prototyping area
  • Populated with a PIC16LF1937 featuring NanoWatt XLP technology
  • 3 Volt, 40 segment Multimeter LCD glass
  • Potentiometer, LEDs, Mechanical button
  • MCP9800 temperature sensor
  • 32KHz low power crystal
  • Current monitoring connector to measure low power XLP capabilities
  • in circuit serial programming interface for PICkit3
  • PICkit serial interface
  • Expansion header for F1 BLDC motor add-on
F1 evaluation platform, PICkit-3 in-circuit debugger, USB cable, CDROM containing software demo programs
  • Industrial
  • Consumer Electronics
Find Similar Products grouped by common attributes

Availability

Availability: SG 0 UK 27

Price For: 1 Each

Minimum Order Quantity: 1

Order Multiple Quantity: 1

Unit Price: Php4,130.30

  1. Qty

Price

Qty List Price
1+  Php4,130.30
Legislation and Environmental
