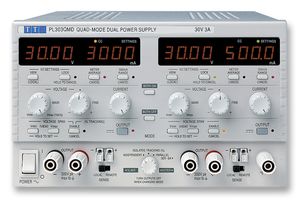

AIM-TTI INSTRUMENTS  PL303QMDP  2 Output 180W Programmable Bench Top DC Laboratory Power Supply with RS232/USB/LAN Connectivity

Technical Data Sheet (682.79KB) EN See all Technical Docs

Image is for illustrative purposes only. Please refer to product description.

AIM-TTI INSTRUMENTS PL303QMDP
AIM-TTI INSTRUMENTS PL303QMDP
AIM-TTI INSTRUMENTS PL303QMDP
360°

Product Overview

The New PL-P series includes all of the manual control features of the New PL series, but adds comprehensive remote control facilities. The ultra-compact rack-modular sizing makes it ideally suited to rack mounted system applications, while its user-friendly manual controls are retained for bench top applications. To meet the varying needs of today's engineers, a comprehensive array of interfaces is provided. RS-232, USB and LAN (Ethernet) with LXI support are provided as standard.
  • High performance linear regulated power supplies
  • Models from 6V/8A up to 60V/1.5A
  • Full digital remote control and readback
  • RS-232, USB and LAN (Ethernet), GPIB optional
  • LAN Interface conforms with LXI standard
  • Interfaces are opto-isolated from outputs
  • IVI Driver supplied
  • Analog remote control of V and I
  • Front and rear terminals
  • Selectable remote sense terminals
  • Ultra-compact size of quarter-rack 3U
  • High power density - up to 90 watts per output
  • Manual control features as per New PL Series
  • Independent, Isolated Tracking, Ratio Tracking and True Parallel modes on dual & triple models
  • High current low voltage output on triple output model

Product Information

Power Supply Output Type:
Adjustable
No. of Outputs:
2 Output
Output Voltage Min:
0V
Output Voltage Max:
30V
Output Current Min:
100µA
Output Current Max:
6A
Battery Size Code:
Power Rating:
90W
Supply Voltage Min:
103.5VAC
Supply Voltage Max:
253VAC
Warranty:
3 Years
Product Range:
PL Series
Plug Type:
-
Load Regulation:
0.01 %
Width:
210 mm
Length:
295 mm
Height:
130 mm
Output Voltage - Output 2:
30 V
Input Voltage:
103.5V AC to 126.5V AC, 207V AC to 253V AC
Output Current - Output 2:
3 A
Supply Voltage:
230 V
Weight:
10 kg
Manufacturers Warranty:
3
Output Current:
3 A
Approval Bodies:
CE
SVHC:
No SVHC (15-Jun-2015)
Output Voltage:
30 V

Find similar products  grouped by common attribute

Legislation and Environmental

Country of Origin:
Great Britain

Country in which last significant manufacturing process was carried out

Tariff No:
85044090
Weight (kg):
12
